Same model may have multiple batches, images only for reference.

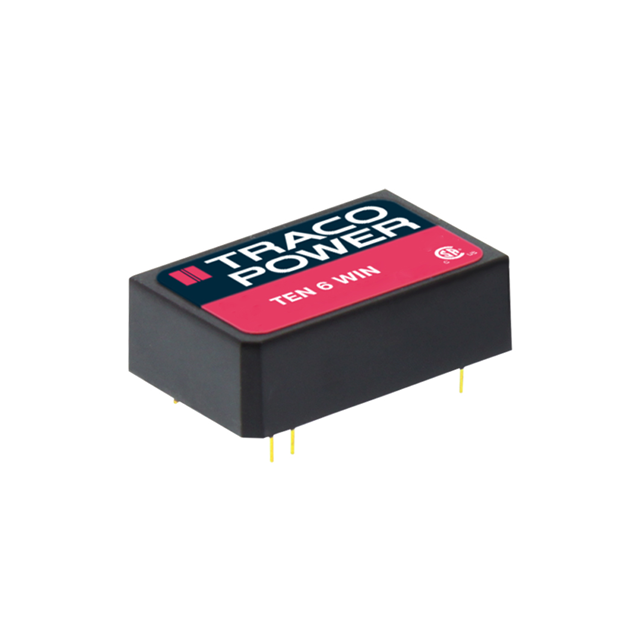

TEN 6-2422WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 6-2422WIN

Part No TEN 6-2422WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEN 6WIN (6W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 250mA, 250mA
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 84%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number TEN 6
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names TEN6-2422WIN-ND,1951-3031,2266-TEN 6-2422WIN,TEN 6-2422WIN-ND,TEN6-2422WIN
Standard Package 10
Win Source Part Number 1198953-TEN 6-2422WIN
Ultra Librarian 3D Model Ultra Librarian TEN 6-2422WIN CAD Model

Description

The TEN 6-2422WIN is a 6W isolated DC-DC converter module manufactured by Traco Power.

  • Designed for: Use in various applications, including ITE (Commercial) equipment
  • Outputs: Two
  • Maximum Output Current: 250mA per output
  • Input Voltage Range: 9V to 36V
  • Output Voltage: ±12V
  • Protection: Overcurrent protection and short-circuit protection
  • Package: 24-DIP module with 8 leads
  • Supply and Demand Status: Currently experiencing a shortage
