Same model may have multiple batches, images only for reference.

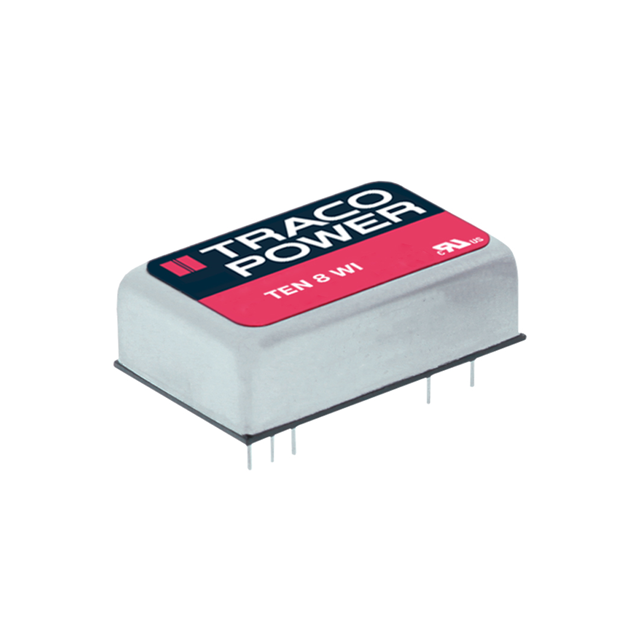

TEN 8-4821WI Real Image
Same model may have multiple batches, images only for reference.

TEN 8-4821WI

Part No TEN 8-4821WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 8W / Isolated Module DC DC Converter 2 Output 5V -5V 800mA, 800mA 18V - 75V Input
Datasheet
TEN 8-4821WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 800mA, 800mA
Power (Watts) 8 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 84%
Mounting Through Hole
Case / Package 24-DIP Module, 9 Leads
Size / Dimension 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Base Product Number TEN 8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-3041,TEN8-4821WI,TEN 8-4821WI-ND,2266-TEN 8-4821WI,TEN8-4821WI-ND
Standard Package 10
Win Source Part Number 1335852-TEN 8-4821WI
Ultra Librarian 3D Model Ultra Librarian TEN 8-4821WI CAD Model

Description

Traco Power's TEN 8-4821WI is an isolated module type electronic component that is used in power supplies-board mount>DC DC Converters.

  • Packaging: Tube
  • Standard Package: 10
  • Mounting: Through a hole
  • Size/Dimension: 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
  • Applications: ITE (Commercial), Railway
  • Power: 8 W
  • Voltage-isolation: 1.5 kV
  • Outputs: Two
  • Maximum Current Output: 800mA, 800mA
  • Input Voltage: 18V to 75V
  • Output Voltage: 5V and -5V respectively
  • Efficiency: 84 percent
  • Operating Temperature Range: -40°C ~ 85°C (With Derating)
  • Case/Package: 24-DIP module, 9 leads
  • ECCN: EAR99 compliant
