Same model may have multiple batches, images only for reference.

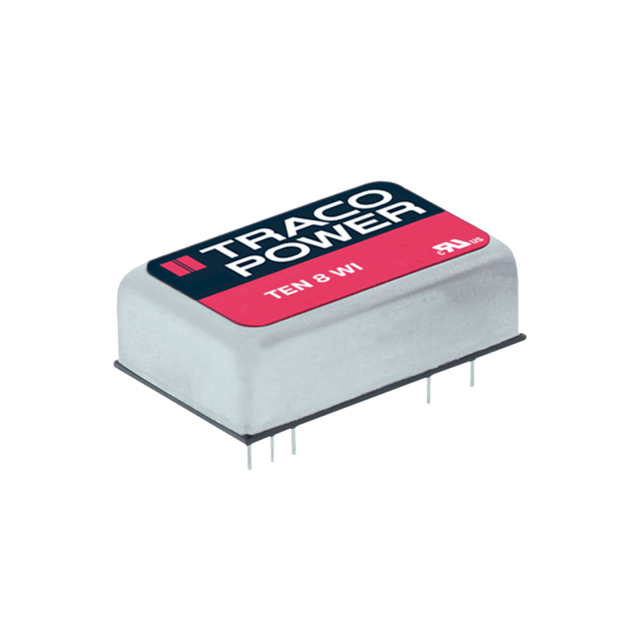

TEN 8-4822WI Real Image
Same model may have multiple batches, images only for reference.

TEN 8-4822WI

Part No TEN 8-4822WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 8W / Isolated Module DC DC Converter 2 Output 12V -12V 333mA, 333mA 18V - 75V Input
Datasheet
TEN 8-4822WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 333mA, 333mA
Power (Watts) 8 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 24-DIP Module, 9 Leads
Size / Dimension 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Base Product Number TEN 8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2230
Standard Package 10
Win Source Part Number 1335860-TEN 8-4822WI
Ultra Librarian 3D Model Ultra Librarian TEN 8-4822WI CAD Model

Description

The TEN 8-4822WI is an 8W, isolated module DC-DC converter from Traco Power that has two outputs.

  • Size: 1.26" L x 0.80" W x 0.40" H
  • Temperature Range: -40°C to 85°C (with derating)
  • Voltage Isolation: 1.5kV
  • Efficiency: 87%
  • Voltage Input: 18V to 75V
  • Voltage Output: 12V and -12V
  • RoHS3 Compliant: Yes
  • MSL: Not Applicable
  • Applications: ITE (commercial) and railway
