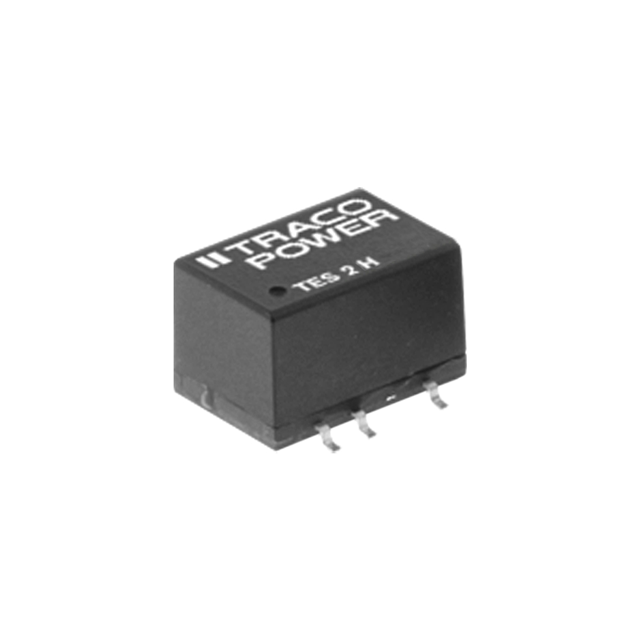

TES 2-2422H Real Image
Same model may have multiple batches, images only for reference.

TES 2-2422H

Part No TES 2-2422H
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 21.6V - 26.4V Input
Datasheet
TES 2-2422H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 83mA, 83mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 79%
Mounting Surface Mount
Case / Package 10-SMD Module, 6 Leads
Size / Dimension 0.64" L x 0.37" W x 0.35" H (16.3mm x 9.3mm x 8.9mm)
Base Product Number TES 2
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TES 2-2422H-ND,TES2-2422H
Standard Package 10
Win Source Part Number 1335864-TES 2-2422H
Ultra Librarian 3D Model Ultra Librarian TES 2-2422H CAD Model

Description

The TES 2-2422H is a DC DC converter from Traco Power that is board mounted and isolated.

  • Power: 2W
  • Outputs: Two outputs with a maximum current output of 83mA each
  • Input Voltage Range: 21.6V to 26.4V
  • Voltage Isolation: 1.5 kV
  • Efficiency: 79%
  • Application: Commercial ITE applications
  • Temperature Range: -40°C ~ 85°C (With Derating)
  • Packaging: Tube packaging with a standard package of 10
  • ECCN: EAR99
  • HTSUS: 8504.40.9580
  • Other Part Numbers: TES 2-2422H-ND and TES2-2422H
  • Base Product Number: TES 2
  • ROHS3 Compliant: Yes
