Same model may have multiple batches, images only for reference.

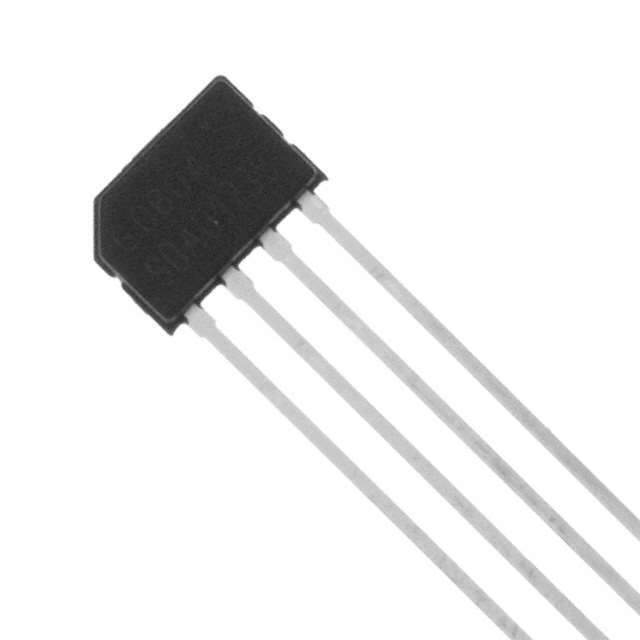

TLE4990E6782HAXA1 Real Image
Same model may have multiple batches, images only for reference.

TLE4990E6782HAXA1

Part No TLE4990E6782HAXA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR LINEAR ANALOG SSO4
Datasheet
TLE4990E6782HAXA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Type Linear
Technology Hall Effect
Axis Single
Output Type Analog Voltage
Sensing Range 0mT to 400mT
Supply Voltage - Operating 4.5 V to 5.5 V
Current - Supply (Max) 5.5mA
Current - Output (Max) 1.2mA
Temperature Range - Operating -40°C to 150°C (TA)
Features Programmable, Temperature Compensated
Case / Package P-SSO-4-1
Win Source Part Number 1108714-TLE4990E6782HAXA1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TLE4990E6782HAXA1 CAD Model

Description

The Infineon Technologies TLE4990E6782HAXA1 is a programmable, temperature-compensated linear Hall Effect sensor that is designed to deliver high performance in sensors and transducers.

  • Type: Linear Hall Effect Sensor
  • Programmable: Yes
  • Temperature-Compensated: Yes
  • Application: Sensors and Transducers
  • Sensing Range: 0mT to 400mT
  • Supply Voltage Range: 4.5V to 5.5V
  • Package: P-SSO-4-1
  • Axis: Single
  • Product Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
