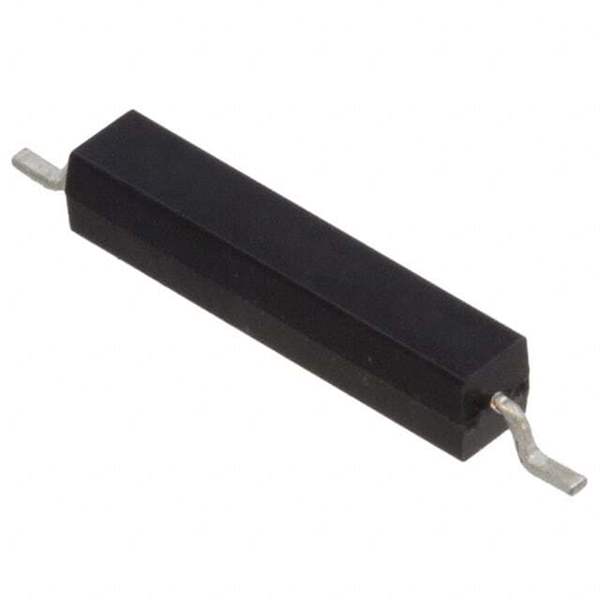

59170-1-T-00-D Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59170-1-T-00-D

Part No 59170-1-T-00-D
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SWITCH REED SPST-NO 350MA 140V / Molded Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Magnetic, Reed Switches
Mfr Littelfuse Inc.
Series 59170
Package Tape & Reel
Type Molded Body Reed
Circuit SPST-NO
Operate Range 15 ~ 20AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Power - Rated 10W
Operate Time 1 ms
Release Time 0.5 ms
Mounting SMD (SMT)
Termination Style Gull Wing
Length - Overall 0.640" (16.26mm)
Size - Body 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm)
Height Above Board 0.095" (2.41mm)
Temperature Range - Operating -40°C ~ 125°C
Capacitance 0.3 pF
Current - Carry 800mA (DC)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names HE551TR,HE551DKR,Q7415242,1294-59170-1-T-00-D,HE551CT,591701T00D
Standard Package 1,500
Win Source Part Number 1153560-59170-1-T-00-D
Ultra Librarian 3D Model Ultra Librarian 59170-1-T-00-D CAD Model

Description

The Littelfuse Inc. 59170 series is a molded body reed switch that has a capacitance of 0.3 pF and a power rating of 10W.

  • Manufacturer: Littelfuse Inc.
  • Capacitance: 0.3 pF
  • Power Rating: 10W
  • Circuit: SPST-NO
  • Operate Time: 1 ms
  • Release Time: 0.5 ms
  • Mounting Type: SMD (SMT)
  • Termination Style: Gull Wing
  • Package: Tape & reel
  • Height Above Board: 0.095 inches
  • Supply and Demand Status: Currently balanced
