Same model may have multiple batches, images only for reference.

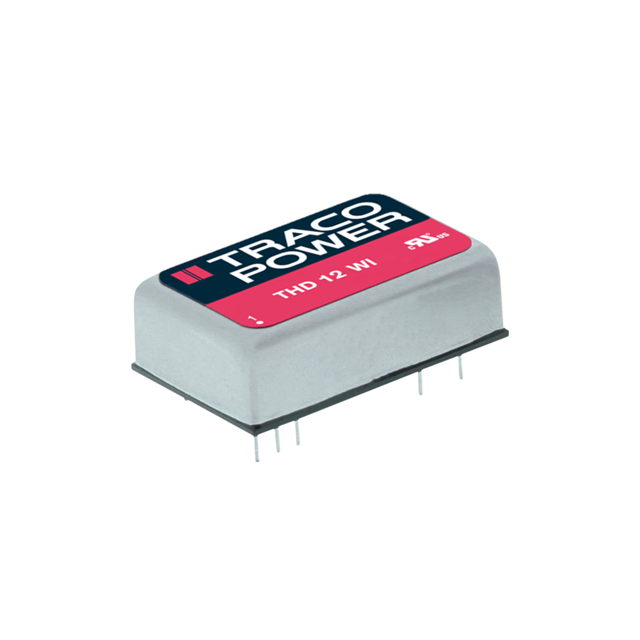

THD 12-2422WI Real Image
Same model may have multiple batches, images only for reference.

THD 12-2422WI

Part No THD 12-2422WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 12W / Isolated Module DC DC Converter 2 Output 12V -12V 500mA, 500mA 9V - 36V Input
Datasheet
THD 12-2422WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 500mA, 500mA
Power (Watts) 12 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 85%
Mounting Through Hole
Case / Package 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number THD 12
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2255
Standard Package 10
Win Source Part Number 1335935-THD 12-2422WI
Ultra Librarian 3D Model Ultra Librarian THD 12-2422WI CAD Model

Description

This electronic component is a Traco Power DC DC Converter with the Win Source Part Number of 1335935-THD 12-2422WI.

  • Win Source Part Number: 1335935-THD 12-2422WI
  • Type: Power supply board mount
  • Module Type: Isolated
  • Features: Remote on/off, OVP, SCP, and UVLO
  • Size/Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Application: ITE (Commercial)
  • Standard Package: 10
  • Mounting Type: Through hole
  • Maximum Output Current: 500mA for both outputs
  • Input Voltage: 9V to 36V
  • Output Voltage: 12V and -12V
  • Efficiency: 85%
  • Operating Temperature: -40°C ~ 85°C (With Derating)
  • Package: 24-DIP module, 8 leads
  • MSL Level: Not applicable
  • REACH Status: Unaffected
  • HTSUS: 8504.40.9580
  • Other Part Number: 1951-2255
  • Base Product Number: THD 12
  • ROHS3 Compliant: Yes
