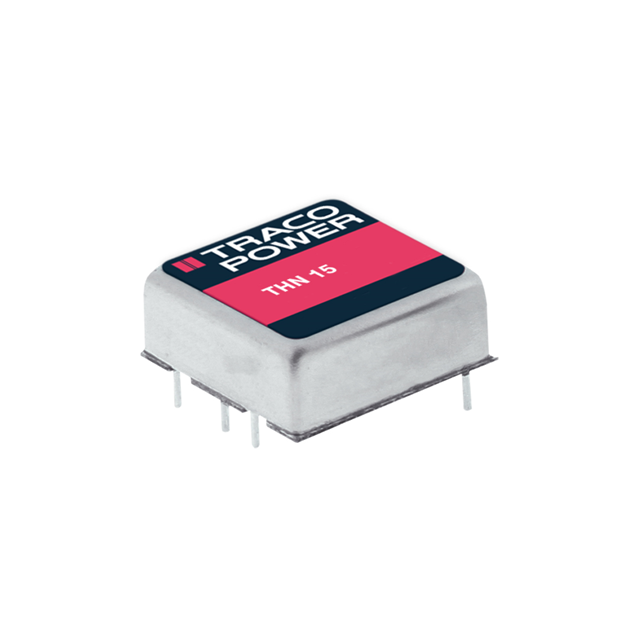

Same model may have multiple batches, images only for reference.

THN 15-1222

Name: THN 15-1222
Brand: Traco Power
SKU: 1335991
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	THN 15-1222
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 15W / Isolated Module DC DC Converter 2 Output 12V -12V 625mA, 625mA 9V - 18V Input
Datasheet	THN 15-1222 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	625mA, 625mA
Power (Watts)	15 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	87%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number	THN 15
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THN15-1222,1951-3116,THN15-1222-ND,THN 15-1222-ND
Standard Package	10
Win Source Part Number	1335991-THN 15-1222
Ultra Librarian 3D Model	Ultra Librarian THN 15-1222 CAD Model

Alternative Products

Description

The Traco Power 1335991-THN 15-1222 is a DC-DC converter with an isolated module type and a power output of 15W.

Voltage Isolation: 1.5kV
Voltage Input Range: 9V to 18V
Standard Package: 10
Mounting: Through-hole
Temperature Range: -40°C to 85°C with derating
RoHS Compliance: RoHS compliant
Efficiency: 87%
Application: ITE (Commercial) applications
