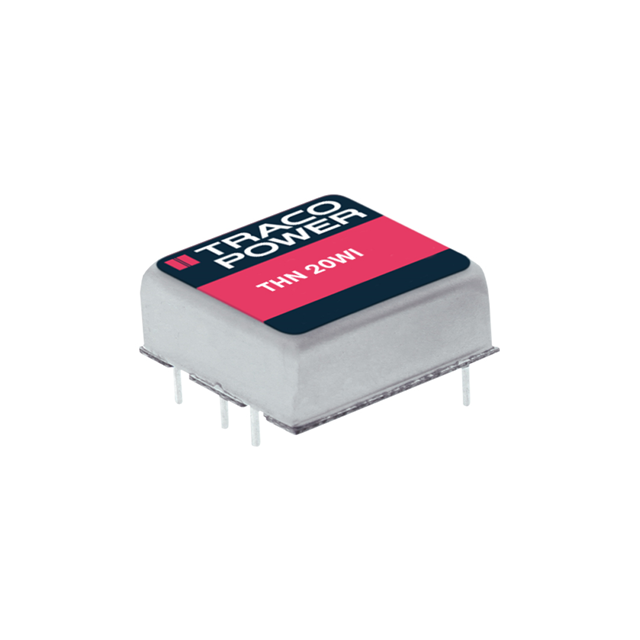

THN 20-4822WI Real Image
Same model may have multiple batches, images only for reference.

THN 20-4822WI

Part No THN 20-4822WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 20W / Isolated Module DC DC Converter 2 Output 12V -12V 833mA, 833mA 18V - 75V Input
Datasheet
THN 20-4822WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 833mA, 833mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 89%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Approval Agency CB, cURus
Base Product Number THN 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN 20-4822WI-ND,THN20-4822WI
Standard Package 10
Win Source Part Number 1336043-THN 20-4822WI
Ultra Librarian 3D Model Ultra Librarian THN 20-4822WI CAD Model

Description

The Traco Power 1336043-THN 20-4822WI is an isolated module type DC-DC converter with a remote on/off, OVP, and SCP feature.

  • Power: 20 W
  • Voltage Isolation: 1.5 kV
  • Standard Package: 10
  • Mounting Type: Through hole
  • Voltage Input: 18V to 75V
  • Voltage Output: 12V and -12V
  • Efficiency: 89%
  • Operating Temperature: -40°C ~ 75°C (With Derating)
  • ECCN Compliant: EAR99
  • RoHS3 Status: Yes
