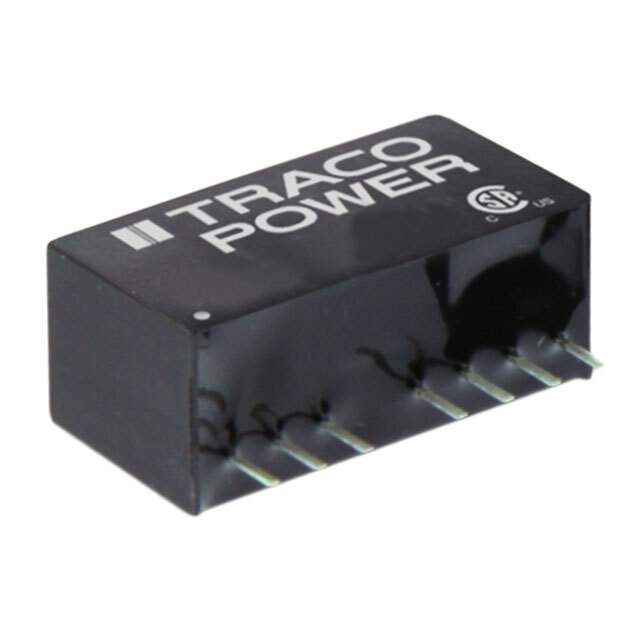

TMR 1223 Real Image
Same model may have multiple batches, images only for reference.

TMR 1223

Part No TMR 1223
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 65mA, 65mA 9V - 18V Input
Datasheet
TMR 1223 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 65mA, 65mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 84%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Supplier Device Package Module
Base Product Number TMR 12
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2341
Standard Package 10
Win Source Part Number 1336135-TMR 1223
Ultra Librarian 3D Model Ultra Librarian TMR 1223 CAD Model

Description

The Traco Power TMR 1223 is a DC-DC converter with a remote on/off feature and short circuit protection.

  • Converter Type: Isolated module
  • Size: 0.86” L x 0.36” W x 0.44” H
  • Power Output: 2 W
  • Voltage Isolation: 1.5 kV
  • Outputs: Two
  • Maximum Current Output: 65mA each
  • Input Voltage: 9V to 18V
  • Output Voltage: 15V and -15V respectively
  • Efficiency: 84%
  • Mounting Type: Through-hole
  • Application: ITE (Commercial)
  • Package: 8-SIP module, 7 leads
  • Temperature Range: -40°C to 85°C
  • Compliance: ROHS3 compliant
