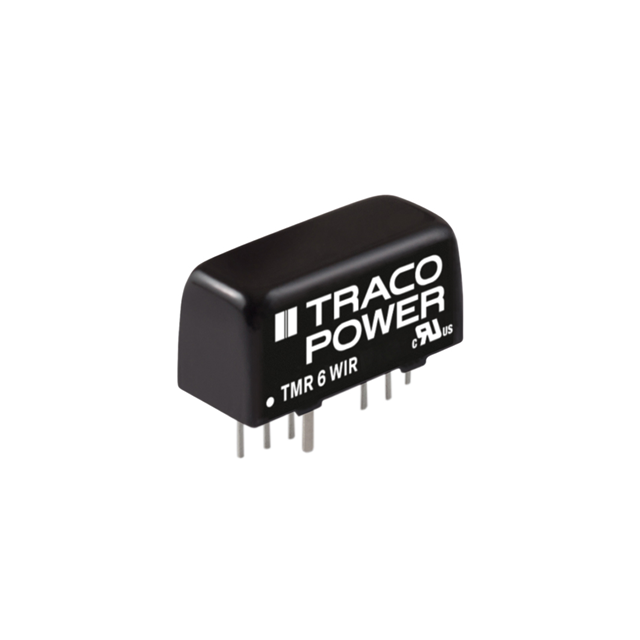

Same model may have multiple batches, images only for reference.

TMR 6-4819WIR

Name: TMR 6-4819WIR
Brand: Traco Power
SKU: 1336282
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TMR 6-4819WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 9V 6W / Isolated Module DC DC Converter 1 Output 9V 666mA 18V - 75V Input
Datasheet	TMR 6-4819WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	9V
Current - Output (Max)	666mA
Power (Watts)	6 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, SCP
Temperature Range - Operating	-40°C ~ 80°C (With Derating)
Efficiency	85%
Mounting	Through Hole
Case / Package	8-SIP Module
Size / Dimension	0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Base Product Number	TMR 6
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2027
Standard Package	10
Win Source Part Number	1336282-TMR 6-4819WIR
Ultra Librarian 3D Model	Ultra Librarian TMR 6-4819WIR CAD Model

Alternative Products

Description

Traco Power's TMR 6-4819WIR is an isolated module that belongs to the category of power supplies - board mount>DC DC converters.

Power: 6W
Voltage-Isolation: 3kV
Current - Output (max): 666mA
Voltage - Input (min): 18V
Voltage - Input (max): 75V
Voltage - Output 1: 9V
Size / Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Packaging: Tube
Standard Package: 10
Mounting: Through hole
Features: Remote on/off, OCP, SCP
Applications: ITE (Commercial), Railway
Temperature Range: -40°C ~ 80°C (With Derating)
Case / Package: 8-SIP module
Win Source Part Number: 1336282-TMR 6-4819WIR
