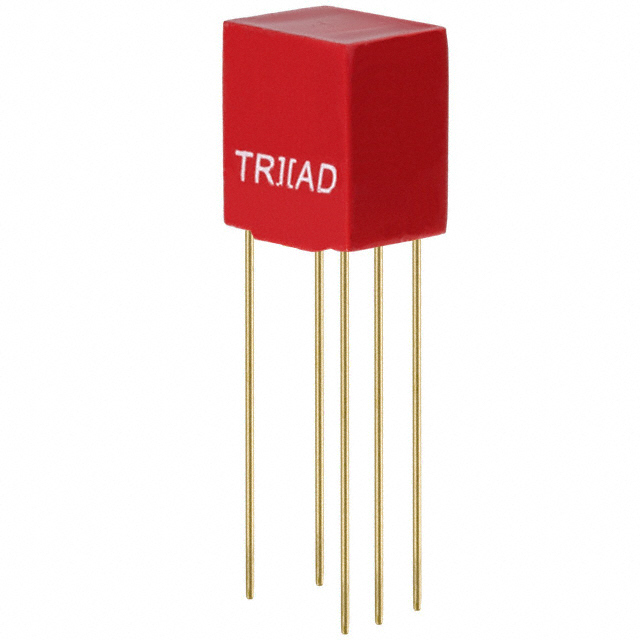

Same model may have multiple batches, images only for reference.
SP-32 Triad Magnetics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SP-32

Part No SP-32
Manufacturer Triad Magnetics
Catalog Audio Transformers
Description AUDIO XFMR 500 / 50 TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Turns Ratio - Primary 3.16:1
Impedance - Primary (Ohms) 500
Impedance - Secondary (Ohms) 50
DC Resistance (DCR) - Primary 60Ohm
DC Resistance (DCR) - Secondary 8Ohm
Transformer Type Audio Coupling
Frequency Range 300Hz ~ 100kHz
Frequency Response ±2dB
Voltage - Isolation 1000VRMS @ 1 Second
Power Level 50mW
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Size / Dimension 0.410" L x 0.310" W (10.41mm x 7.87mm)
Height - Seated (Max) 0.465" (11.80mm)
Termination Style PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1544986-SP-32
Ultra Librarian 3D Model Ultra Librarian SP-32 CAD Model
