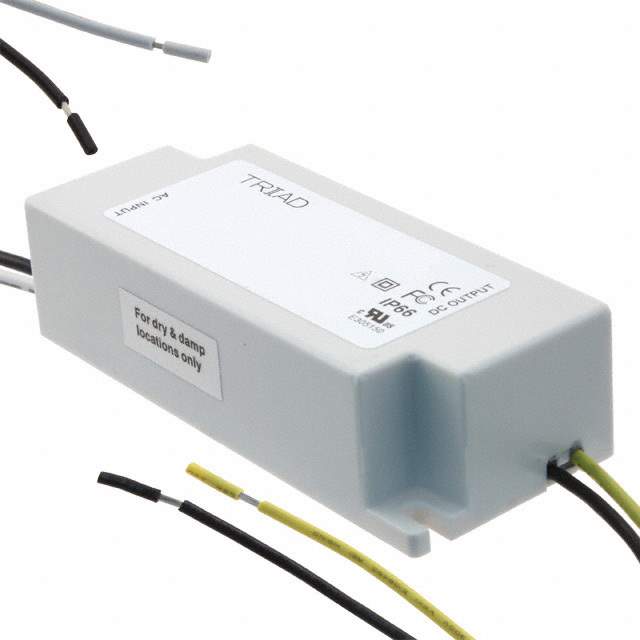

TLD1020-12 Real Image
Same model may have multiple batches, images only for reference.

TLD1020-12

Part No TLD1020-12
Manufacturer Triad Magnetics
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRIVER CV AC/DC 12V 1.66A  /  1.66A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
TLD1020-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr Triad Magnetics
Series TLD1020
Package Box
Type Constant Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 100VAC
Voltage - Input (Max) 304VAC
Voltage - Output 12V
Current - Output (Max) 1.66A
Power (Watts) 20 W
Features OCP, OVP, SCP
Ratings IP66, NEMA 4
Temperature Range - Operating -30°C ~ 60°C
Efficiency 84%
Termination Style Wire Leads
Dimension 3.74" L x 1.57" W x 0.98" H (95.0mm x 40.0mm x 25.0mm)
Approval Agency CE, cUL, UL
Mounting Type Chassis Mount
Weight 0.265 lb (120.2 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names TLD102012,237-1313
Standard Package 1
Win Source Part Number 1174676-TLD1020-12
Ultra Librarian 3D Model Ultra Librarian TLD1020-12 CAD Model

Description

The TLD1020-12 is a constant voltage LED driver manufactured by Triad Magnetics.

  • Series: TLD1020
  • Power Output: 20W
  • Voltage Output: 12V
  • Termination Style: Wire Leads
  • Package: Box
  • Standard Package: 1
  • IP Rating: IP66
  • NEMA Rating: NEMA 4
  • Protection Features: OCP, OVP, SCP
  • Efficiency: 84%
  • Maximum Output Current: 1.66A
  • Voltage Input Range: 100VAC to 304VAC
  • Operating Temperature: -30°C to 60°C
  • Type: AC DC Converter
  • Mounting Type: Chassis Mount
  • Dimensions: 3.74" L x 1.57" W x 0.98" H (95.0mm x 40.0mm x 25.0mm)
  • ECCN: EAR99
  • HTSUS: 8504.40.9510
  • Approvals: CE, cUL, UL
