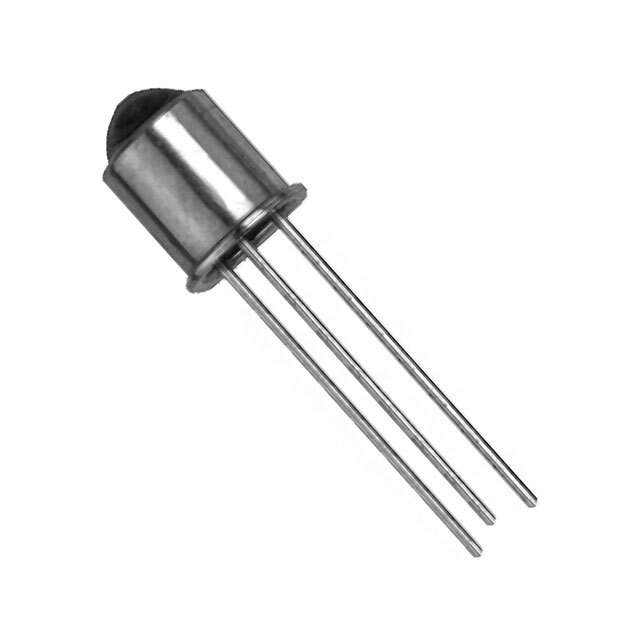

OP805TXV Real Image
Same model may have multiple batches, images only for reference.

OP805TXV

Part No OP805TXV
Manufacturer TT Electronics
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 890NM TOP TO206AA / Phototransistors 890nm Top View TO-206AA, TO-18-3 Metal Can
Datasheet
OP805TXV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr TT Electronics/Optek Technology
Package Bulk
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 890nm
Viewing Angle 24°
Power - Max 250 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -65°C ~ 125°C (TA)
Package / Case TO-206AA, TO-18-3 Metal Can
Base Product Number OP805
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Standard Package 100
Win Source Part Number 1016378-OP805TXV
Ultra Librarian 3D Model Ultra Librarian OP805TXV CAD Model

Description

The TT Electronics/Optek Technology OP805TXV is an optical sensor phototransistor with a maximum power rating of 250mW and a maximum collector emitter breakdown voltage of 30V.

  • Maximum Power: 250mW
  • Maximum Collector Emitter Breakdown Voltage: 30V
  • Maximum Collector Current: 50mA
  • Viewing Angle: 24°
  • Wavelength: 890nm
  • Maximum Dark Current: 100nA
  • Mounting: through hole mounting
  • Package: TO-206AA, TO-18-3 Metal Can
  • Operating Temperature: -65°C to 125°C (TA)
  • RoHS Compliance: non-compliant
  • REACH: unaffected
