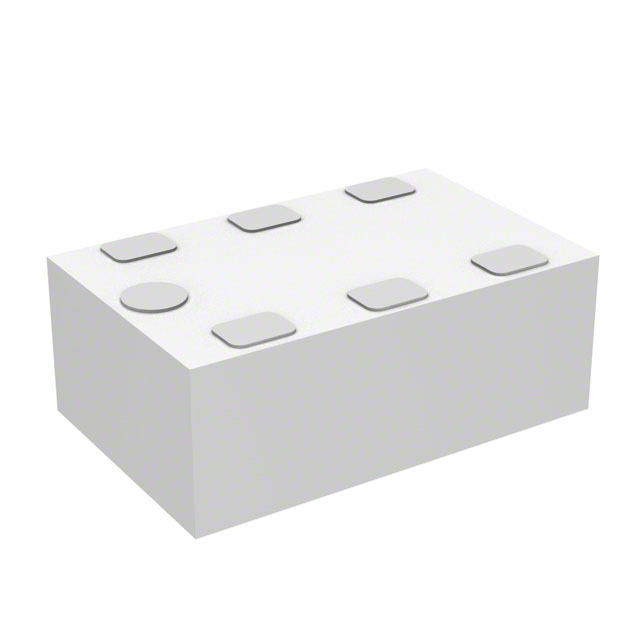

Same model may have multiple batches, images only for reference.
DC1722J5005AHF TTM Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DC1722J5005AHF

Part No DC1722J5005AHF
Manufacturer TTM Technologies
Catalog RF Directional Coupler
Description RF DIR COUPLER 1.7-2.2GHZ 0805
Datasheet
DC1722J5005AHF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Coupler Type Standard
Frequency 1.7GHz ~ 2.2GHz
Coupling Factor 6dB
Insertion Loss 0.5dB
Power - Max 5W
Return Loss -24dB
Package / Case 6-SMD, No Lead
Supplier Device Package 0805
Ultra Librarian 3D Model Ultra Librarian DC1722J5005AHF CAD Model
