Same model may have multiple batches, images only for reference.

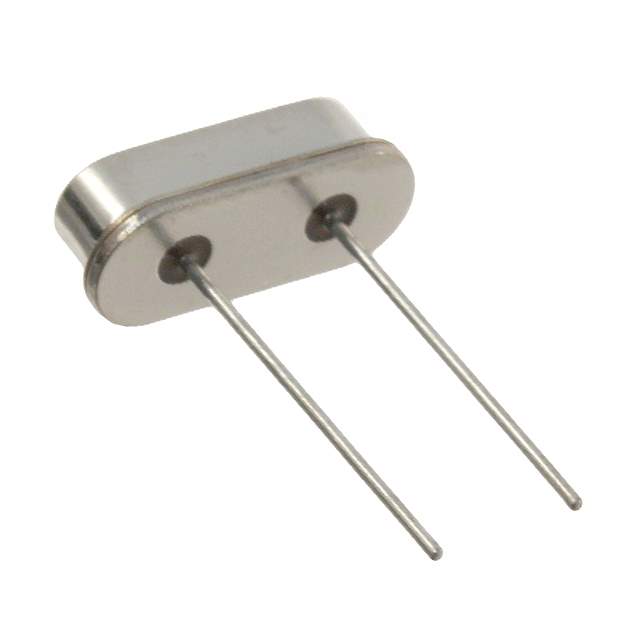

9B-27.000MEEJ-B Real Image
Same model may have multiple batches, images only for reference.

9B-27.000MEEJ-B

Part No 9B-27.000MEEJ-B
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 27.0000MHZ 18PF TH / 27 MHz ±10ppm Crystal 18pF 30 Ohms HC-49/US
Datasheet
9B-27.000MEEJ-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr TXC CORPORATION
Series 9B
Package Bulk
Product Status Obsolete
Type MHz Crystal
Frequency 27 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.145" (3.68mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 9B27000MEEJB,887-1255
Standard Package 1,000
Win Source Part Number 1136639-9B-27.000MEEJ-B
Ultra Librarian 3D Model Ultra Librarian 9B-27.000MEEJ-B CAD Model

Description

The 1136639-9B-27.000MEEJ-B is a MHz crystal oscillator that is widely used in various electronic applications.

  • Frequency: 27 MHz
  • Frequency Tolerance: ±10 ppm
  • Load Capacitance: 18pF
  • ESR: 30 Ohms
  • Height: 0.145" (3.68mm)
  • Mounting: Through-Hole Package
  • Market Threat: in the open market
