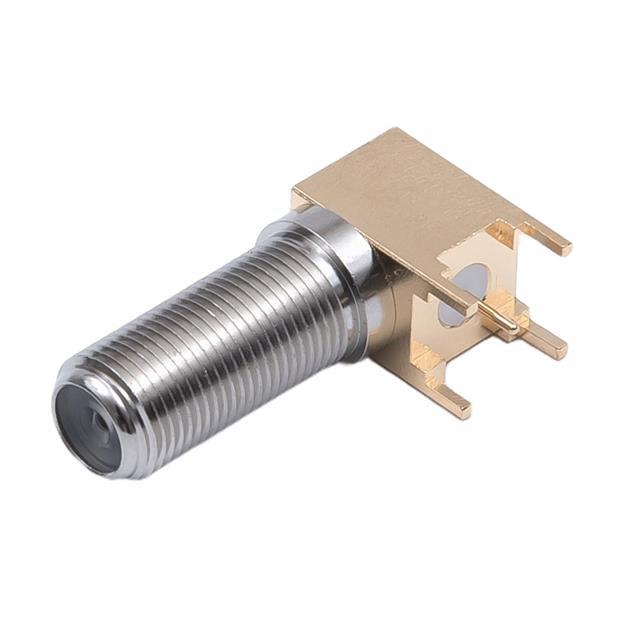

F-224LR-CS TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

F-224LR-CS

Part No F-224LR-CS
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Assemblies
Description F Type Connector Receptacle, Female Socket 75 Ohms Through Hole, Right Angle Solder
Datasheet
F-224LR-CS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style F Type
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75 Ohms
Mounting Type Through Hole, Right Angle
Fastening Type Threaded
Frequency - Max 3GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass, Phosphor Bronze
Ultra Librarian 3D Model Ultra Librarian F-224LR-CS CAD Model
