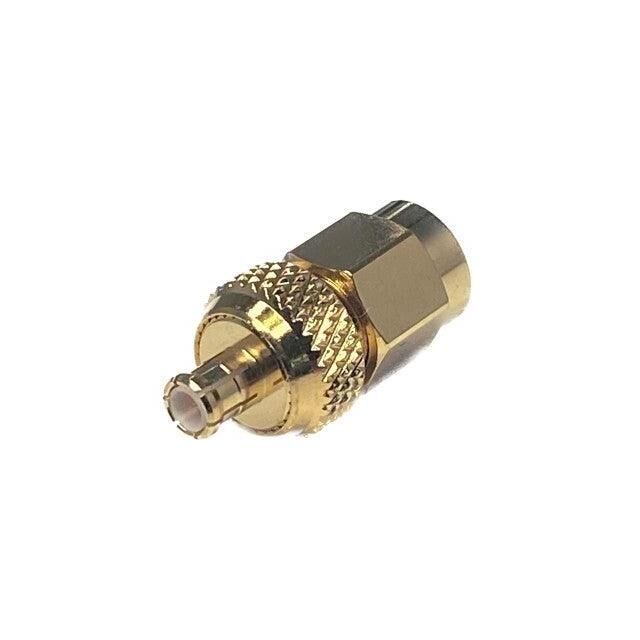

Same model may have multiple batches, images only for reference.
MCX-P-SMAP TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MCX-P-SMAP

Part No MCX-P-SMAP
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Adapters
Description Adapter Coaxial Connector MCX Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
Datasheet
MCX-P-SMAP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Adapter Type Plug to Plug
Conversion Type Between Series
Adapter Series SMA to MCX
Center Gender Male to Male
Convert From (Adapter End) MCX Plug, Male Pin
Convert To (Adapter End) SMA Plug, Male Pin
Impedance 50 Ohms
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Snap-On, Threaded
Frequency - Max 6GHz
Center Contact Plating Gold
Ultra Librarian 3D Model Ultra Librarian MCX-P-SMAP CAD Model
