N-PR TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

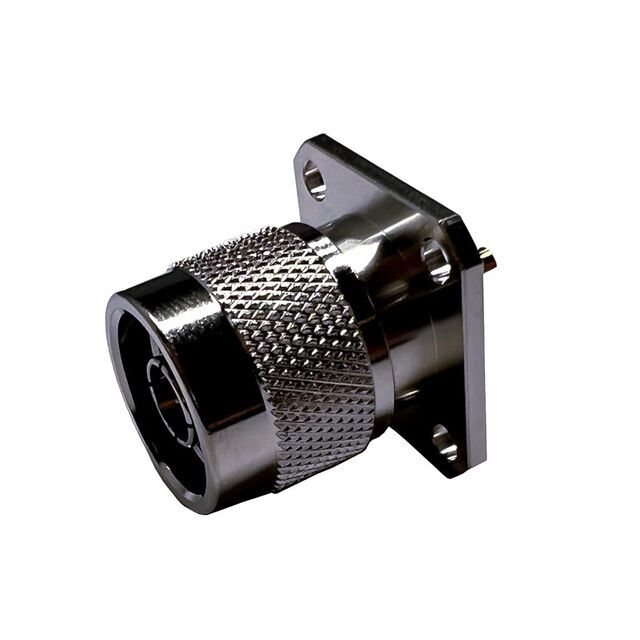

N-PR

Part No N-PR
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Adapters
Description N Type Connector Plug, Male Pin 50 Ohms Panel Mount Solder Cup
Datasheet
N-PR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style N Type
Connector Type Plug, Male Pin
Contact Termination Solder Cup
Shield Termination Solder
Impedance 50 Ohms
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Threaded
Frequency - Max 6GHz
Number of Ports 1
Ultra Librarian 3D Model Ultra Librarian N-PR CAD Model
