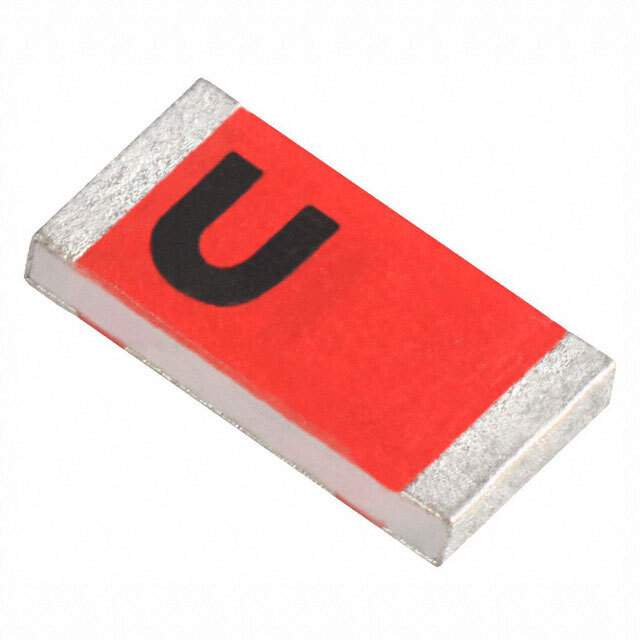

H2U94W1H1G0300 Real Image
Same model may have multiple batches, images only for reference.

H2U94W1H1G0300

Part No H2U94W1H1G0300
Manufacturer Unictron Technologies Corporation
Catalog RF Antennas
Description WIFI+GNSS 1560-1610 2400-2500MHZ  /  1.575GHz, 2.45GHz Bluetooth, GPS, Wi-Fi, Zigbee™ Chip RF Antenna 2.4GHz ~ 2.5GHz 1.3dBi, 1.8dBi Solder Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Unictron Technologies Corporation
Series Automotive, AEC-Q200
Package Tape & Reel
RF Family/Standard Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 1.575GHz, 2.45GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 2
VSWR 2
Gain 1.3dBi, 1.8dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.020" (0.50mm)
Applications Bluetooth, GPS, Wi-Fi, Zigbee™
Base Product Number H2U94
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names H2U94W1H1G0500,2047-H2U94W1H1G0300CT-N,AA089,2047-H2U94W1H1G0300DK,2047-H2U94W1H1G0500DKR,2047-H2U94W1H1G0300CT,2047-H2U94W1H1G0500DKR-ND,2047-H2U94W1H1G0300DKR,2047-H2U94W1H1G0500CT,2047-H2U94W1H1G0300TR,2047-H2U94W1H1G0500TR-ND,2047-H2U94W1H1G0500TR,2047-H2U94W1H1G0500CT-ND
Standard Package 5,000
Win Source Part Number 1128019-H2U94W1H1G0300
Ultra Librarian 3D Model Ultra Librarian H2U94W1H1G0300 CAD Model

Description

The H2U94W1H1G0300 is a chip antenna designed for use in RF/IF and RFID applications and is from an unspecified manufacturer.

  • Series: automotive
  • AEC-Q200 compliant: Yes
  • Frequency range: 2.4GHz to 2.5GHz
  • VSWR: 2
  • Gain: 1.3dBi and 1.8dBi
  • Applications: Bluetooth, GPS, Wi-Fi, and Zigbee
  • Termination: solder
  • Package: tape and reel
  • Mounting: SMD (SMT)
  • Height: 0.020" (0.50mm)
