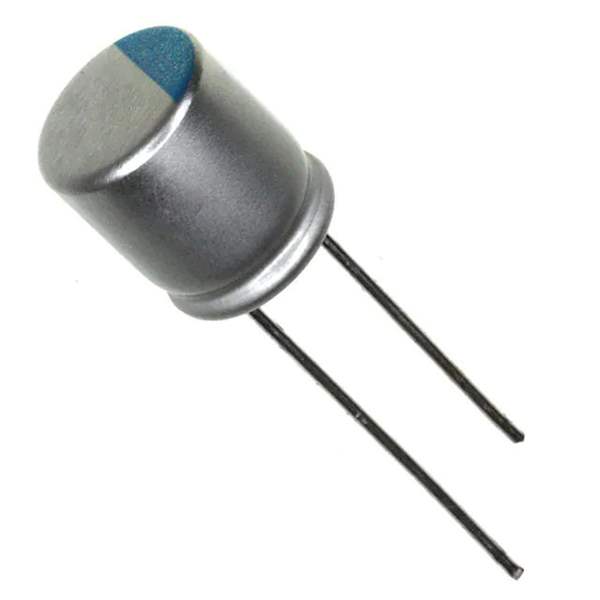

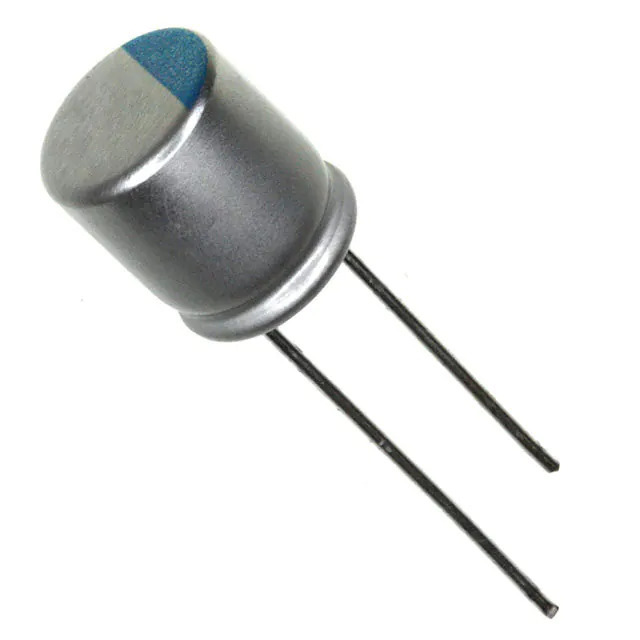

APSG160ELL821MH16S United Chemi-Con
Same model may have multiple batches, images only for reference.

APSG160ELL821MH16S

Part No APSG160ELL821MH16S
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 820UF 20% 16V T/H / 820 µF 16 V Aluminum - Polymer Capacitors Radial, Can 8mOhm 20000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PSG
Package Bulk
Product Status Active
Type Polymer
Capacitance 820 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 8mOhm
Lifetime @ Temp. 20000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 7 A @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359560-APSG160ELL821MH16S
Ultra Librarian 3D Model Ultra Librarian APSG160ELL821MH16S CAD Model

Description

The APSG160ELL821MH16S is a polymer aluminum capacitor from United Chemi-Con.

  • Series: NPCAP™-PSG
  • Capacitance: 820 μF
  • Tolerance: ±20%
  • Voltage Rating: 16 V
  • ESR: 8 mOhm
  • Temperature Range: -55°C to 105°C
  • Lifetime: 20000 hours @ 105°C
  • Mounting Type: Through-Hole
  • Package: Radial, Can
  • Application: General Purpose
  • Ripple Current: 7 A @ 100 kHz
  • Lead Spacing: 0.138" (3.50mm)
  • Size: 0.315" dia (8.00mm)
  • Status: Active
  • REACH: Unaffected
