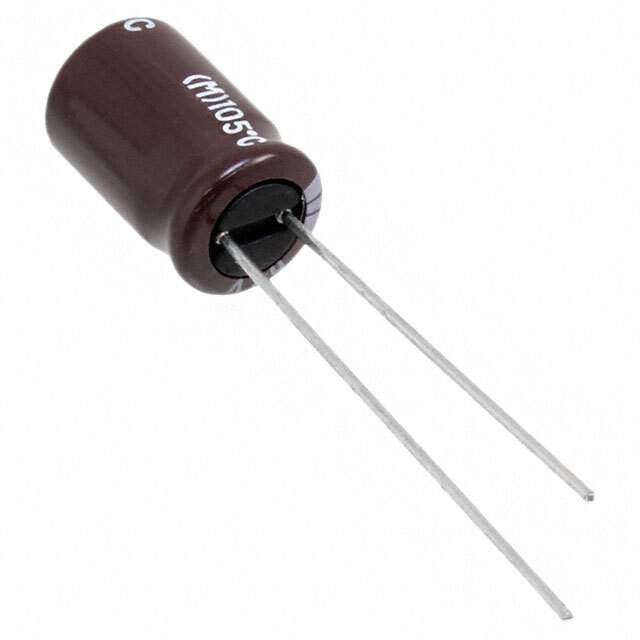

EKZN500ELL101MHB5D Real Image
Same model may have multiple batches, images only for reference.

EKZN500ELL101MHB5D

Part No EKZN500ELL101MHB5D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 9000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer United Chemi-Con
Packaging Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 9000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 480 mA @ 120 Hz
Ripple Current @ High Frequency 1.2 A @ 100 kHz
Impedance 85 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 565-4065
Standard Package 1,000
Win Source Part Number 1331024-EKZN500ELL101MHB5D
Ultra Librarian 3D Model Ultra Librarian EKZN500ELL101MHB5D CAD Model

Description

The 1144516 is an aluminum electrolytic capacitor manufactured by United Chemi-Con.

  • Capacitance: 100 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Impedance: 85 mOhms
  • ESR: Not specified
  • Polarized: Yes
  • Mounting Style: Through-hole
  • Case Package Diameter: 0.315" Dia (8.00mm)
  • Case Package Height: 0.512" (13.00mm)
  • Ripple Current: 480 mA @ 120 Hz (low frequency) and 1.2 A @ 100 kHz (high frequency)
  • Operating Temperature: -40°C ~ 105°C
  • Lifetime: 9000 hours
  • Applications: General-purpose
  • Packaging: Bulk
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
