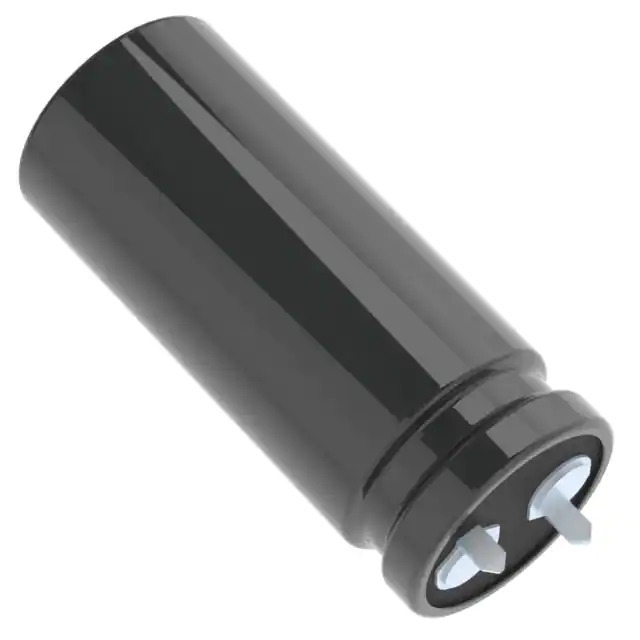

ELXS201VSN102MP50S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXS201VSN102MP50S

Part No ELXS201VSN102MP50S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 200V SNAP / 1000 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXS
Package Bulk
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.45 A @ 120 Hz
Ripple Current @ High Frequency 3.675 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.866" Dia (22.00mm)
Height - Seated (Max) 2.067" (52.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360689-ELXS201VSN102MP50S
Ultra Librarian 3D Model Ultra Librarian ELXS201VSN102MP50S CAD Model

Description

The ELXS201VSN102MP50S is an aluminum electrolytic capacitor manufactured by United Chemi-Con. It belongs to the LXS series and has a capacitance of 1000 µF with a tolerance of ±20%.

  • Capacitance: 1000 µF
  • Tolerance: ±20%
  • Voltage Rating: 200 V
  • Applications: General Purpose
  • Ripple Current (Low Frequency): 2.45 A @ 120 Hz
  • Ripple Current (High Frequency): 3.675 A @ 50 kHz
  • Lead Spacing: 0.394" (10.00mm)
  • Size: 0.866" Dia (22.00mm)
  • Height (Seated): 2.067" (52.50mm)
  • Lifetime: 5000 hours @ 105°C
  • Mounting Type: Through Hole
  • Package: Radial, Can - Snap-In
  • Status: Active
  • REACH Status: Unaffected
