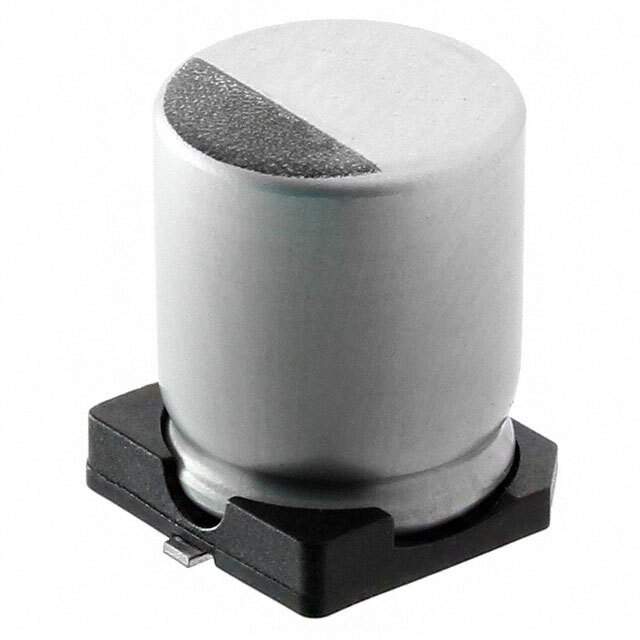

Same model may have multiple batches, images only for reference.

EMZR500ARA221MHA0G

Name: EMZR500ARA221MHA0G
Brand: United Chemi-Con
SKU: 1307278
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EMZR500ARA221MHA0G
Manufacturer	United Chemi-Con
Catalog	Aluminum Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	United Chemi-Con
Series	Alchip™- MZR
Package	Tape & Reel
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	180mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	335 mA @ 120 Hz
Ripple Current @ High Frequency	670 mA @ 100 kHz
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Other Names	565-5154-6,565-5154-1,565-5154-2
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1307278-EMZR500ARA221MHA0G
Ultra Librarian 3D Model	Ultra Librarian EMZR500ARA221MHA0G CAD Model

Description

The Alchip™- MZR series aluminum electrolytic capacitor from United Chemi-Con is a reliable and durable electronic component. United Chemi-Con

Capacitance: 220 µF
Voltage Rating: 50 V
ESR: 180mOhm @ 100kHz
Lifetime: 2000 Hrs @ 105°C
Polarization: Polarized
Ripple Current (Low Frequency): 335 mA @ 120 Hz
Ripple Current (High Frequency): 670 mA @ 100 kHz
Application: Automotive electronic applications
