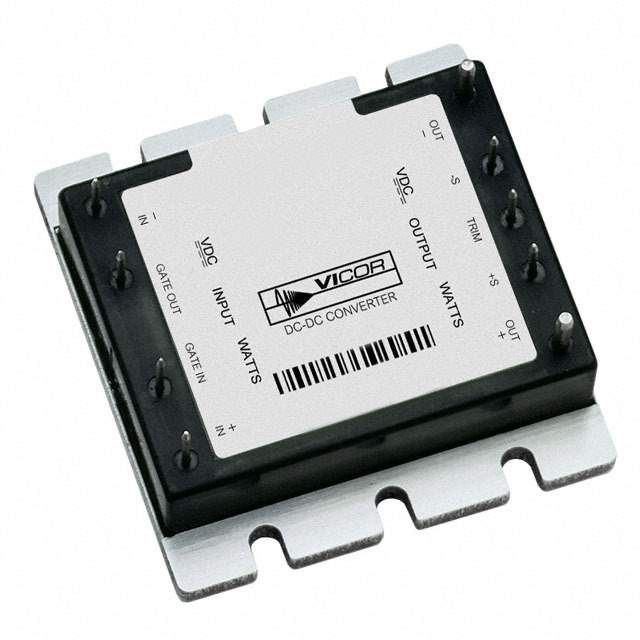

VI-JN2-EZ Real Image
Same model may have multiple batches, images only for reference.

VI-JN2-EZ

Part No VI-JN2-EZ
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description CONVERTER MOD DC/DC 15V 25W
Datasheet
VI-JN2-EZ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Vicor Corporation
Series VI-J00
Packaging Bulk
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 36V
Voltage Input MAX 76V
Voltage - Output 1 15V
Current - Output (Maximum) 1.67A
Power (Watts) 25W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Features OCP, SCP
Operating Temperature Range -10°C ~ 100°C
Efficiency 88%
Mounting Style Through Hole
Package Half Brick
Dimension 2.28" L x 2.40" W x 0.50" H (57.9mm x 70.0mm x 12.7mm)
Win Source Part Number 799072-VI-JN2-EZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VI-JN2-EZ CAD Model

Description

The Vicor Corporation VI-JN2-EZ is an isolated module.

  • Applications: Power Supplies - Board Mount
  • Input Voltage Range: 36V to 76V
  • Output Voltage: 15V
  • Efficiency: 88 percent
  • Maximum Output Current: 1.67A
  • Power: 25W
  • Package: Half brick
