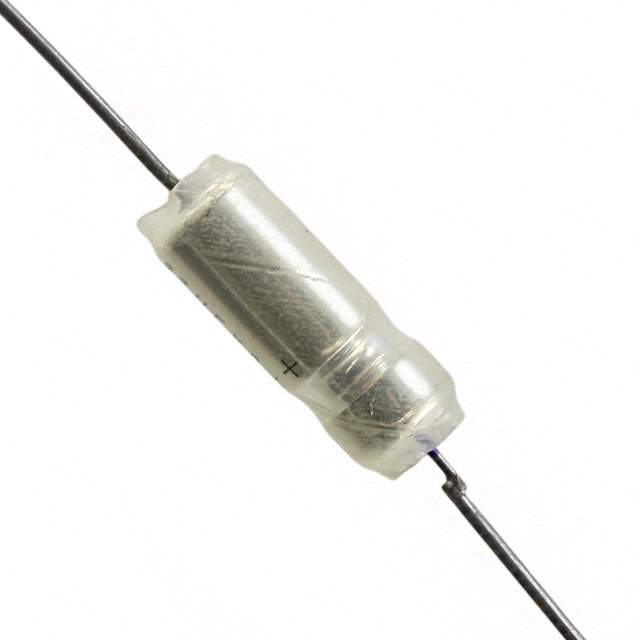

109D475X9100C2 Real Image
Same model may have multiple batches, images only for reference.

109D475X9100C2

Part No 109D475X9100C2
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 4.7UF 100V 10% AXIAL
Datasheet
109D475X9100C2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay Sprague
Series TANTALEX, 109D
Packaging Tray
Capacitance 4.7μF
Tolerance ±10%
Voltage Rating DC 100V
Type Hermetically Sealed
ESR (Equivalent Series Resistance) 10 Ohm
Operating Temperature Range -55°C ~ 125°C
Mounting Style Through Hole
Package Axial
Dimension 0.219" Dia x 0.608" L (5.56mm x 15.45mm)
Manufacturer Size Code C
Features Wet Tantalum
Win Source Part Number 760148-109D475X9100C2
Popularity Medium
Supply and Demand Status Limited
Family Name 109D
Introduction Date December 04, 2006
ECCN EAR99
Country of Origin Israel
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 109D475X9100C2 CAD Model

Description

The 760148-109D475X9100C2 is a hermetically sealed wet tantalum capacitor from Vishay Sprague.

  • Series: TANTALEX, 109D
  • Packaging: Tray
  • Capacitance: 4.7μF
  • Tolerance: ±10%
  • ESR: 10 Ohm
  • Manufacturer Size Code: C
  • Voltage Rating DC: 100V
  • Mounting Type: Through-Hole
  • Package Type: Axial
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2026
  • ECCN: EAR99
  • Country of Origin: Israel
