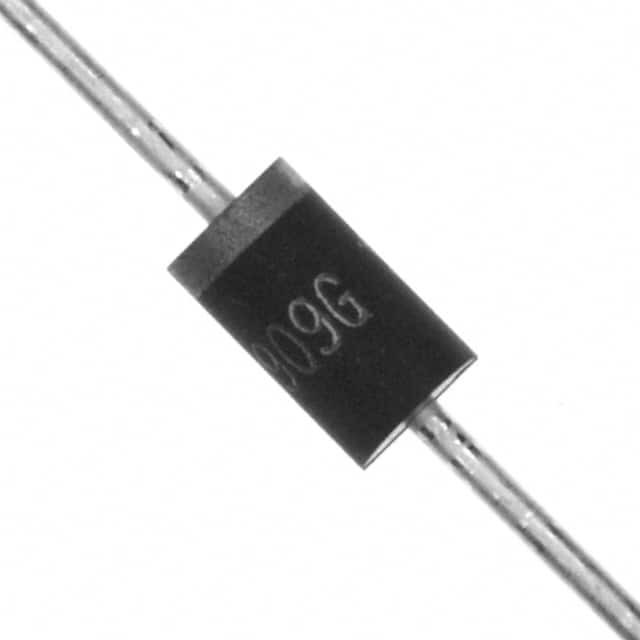

Part No 1N5401/54
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
1N5401/54 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 3 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 100 V
Capacitance @ Vr, F 30pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -50°C ~ 150°C
Base Product Number 1N5401
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1315047-1N5401/54
Ultra Librarian 3D Model Ultra Librarian 1N5401/54 CAD Model

Description

The Vishay 1N5401/54 is a standard recovery diode that has a maximum DC reverse voltage of 100V and an average rectified current of 3A.

  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 3A
  • Forward Voltage: 1.2V @ 3A
  • Reverse Leakage Current: 5 µA @ 100V
  • Capacitance: 30pF @ 4V and 1MHz
  • Mounting Type: Through Hole
  • Application: Rectifier
  • Operating Temperature Range: -50°C to 150°C
  • Status: Obsolete
  • RoHS: Non-Compliant
