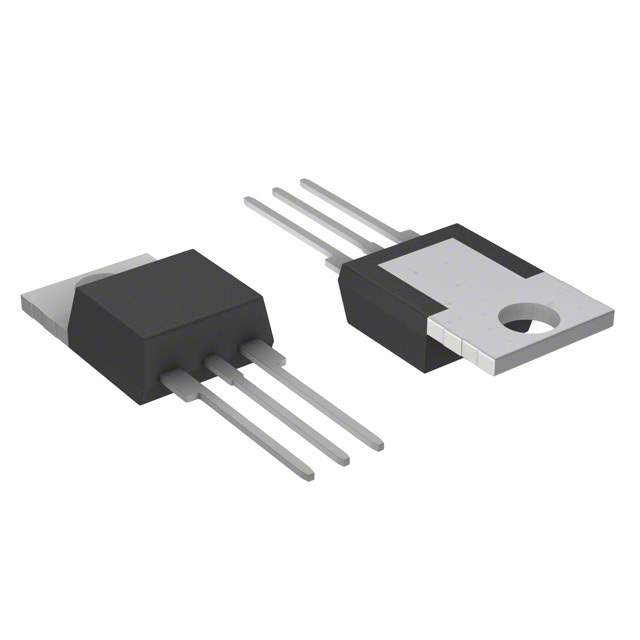

S4015L56 Real Image
Same model may have multiple batches, images only for reference.

S4015L56

Part No S4015L56
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Datasheet
S4015L56 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Littelfuse Inc.
Package Bulk
Voltage - Off State 400 V
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Gate Trigger (Igt) (Max) 30 mA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 9.5 A
Current - On State (It (RMS)) (Max) 15 A
Current - Hold (Ih) (Max) 40 mA
Current - Off State (Max) 10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 188A, 225A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220 Non-Isolated Tab
Other Names Q7586590A,1294-S4015L56,-S4015L56
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1279031-S4015L56
Ultra Librarian 3D Model Ultra Librarian S4015L56 CAD Model

Description

The Littelfuse Inc. S4015L56 SCR is a standard recovery thyristor with a voltage off state of 400V and an on state current of 9.5A (It (AV)) and 15A (It (RMS)).

  • Voltage Off State: 400V
  • On State Current (It (AV)): 9.5A
  • On State Current (It (RMS)): 15A
  • Gate Trigger Voltage (Vgt): 1.5V
  • Gate Trigger Current (Igt): 30mA
  • Current Hold (Ih): 40mA
  • Maximum Off State Current: 10µA
  • Applications: Motor control, lighting control, and power supplies
  • Package: TO-220-3
