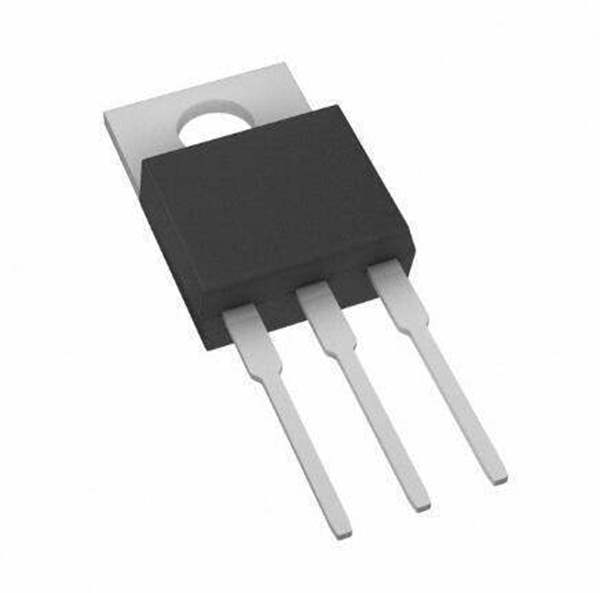

VS-40CTQ045-M3 Vishay General Semiconductor - Diodes Division
Same model may have multiple batches, images only for reference.

VS-40CTQ045-M3

Part No VS-40CTQ045-M3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARR SCHOTT 45V 20A TO220-3
Datasheet
VS-40CTQ045-M3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Vishay General Semiconductor - Diodes Division
Category Discrete Semiconductor Products Diodes Rectifiers Diode Arrays
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Part Status Active
Technology Schottky
Voltage - Forward (Vf) (Max) @ If 680 mV @ 40 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Operating Temperature - Junction -55°C ~ 150°C
Package / Case TO-220-3
Win Source Part Number WS1305793-VS-40CTQ045-M3
Ultra Librarian 3D Model Ultra Librarian VS-40CTQ045-M3 CAD Model

Description

This center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.
