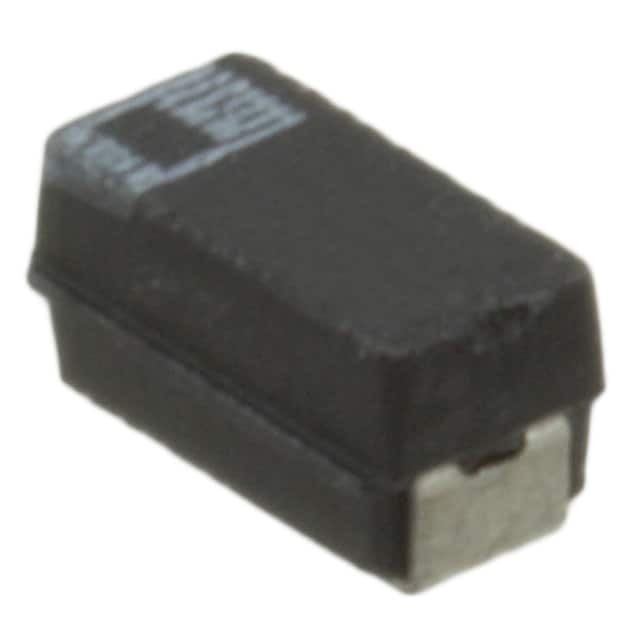

Same model may have multiple batches, images only for reference.
293D225X0016A2TE3
Same model may have multiple batches, images only for reference.

293D225X0016A2TE3

Part No 293D225X0016A2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 2.2UF 20% 16V 1206
Datasheet
293D225X0016A2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr Vishay
Series TANTAMOUNT®, 293D
Package Tape & Reel
Product Status Active
Capacitance 2.2 µF
Tolerance ±20%
Voltage - Rated 16 V
Type Molded
ESR (Equivalent Series Resistance) 5.9Ohm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.071" (1.80mm)
Manufacturer Size Code A
Features General Purpose
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 854911-293D225X0016A2TE3
Ultra Librarian 3D Model Ultra Librarian 293D225X0016A2TE3 CAD Model

Description

The 854911-293D225X0016A2TE3 is a tantalum capacitor from Vishay's TANTAMOUNT® 293D series.

  • Series: TANTAMOUNT® 293D
  • Type: Molded
  • Capacitance: 2.2 μF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • ESR: 5.9 Ohm
  • Application: General-Purpose
  • Mounting: Surface Mount
  • Package Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Seated Height: 0.071" (1.80mm)
  • Packaging: Tape and Reel, 2,000 pcs
  • Temperature Range: -55°C to 125°C
  • Status: Active
