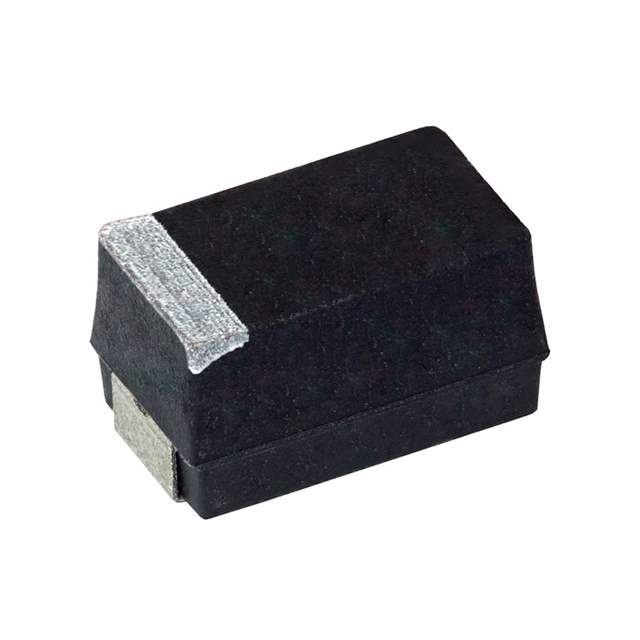

Same model may have multiple batches, images only for reference.

593D156X9035D2TE3

Name: 593D156X9035D2TE3
Brand: Vishay
SKU: 1325870
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	593D156X9035D2TE3
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 15UF 10% 35V 2917 / 15 µF Molded Tantalum Capacitors 35 V 2917 (7343 Metric) 300mOhm
Datasheet	593D156X9035D2TE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum Capacitors
Manufacturer	Vishay Sprague
Packaging	Reel - TR
Capacitance	15 µF
Tolerance	±10%
Voltage - Rated	35 V
Type	Molded
ESR (Equivalent Series Resistance)	300mOhm
Temperature Range - Operating	-55°C ~ 125°C
Mounting	Surface Mount
Case / Package	2917 (7343 Metric)
Size / Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.122" (3.10mm)
Manufacturer Size Code	D
Features	General Purpose
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Other Part Number	718-1103-2,718-1103-1,718-1103-6
Standard Package	500
Win Source Part Number	1325870-593D156X9035D2TE3
Ultra Librarian 3D Model	Ultra Librarian 593D156X9035D2TE3 CAD Model

Alternative Products

Description

The Vishay Sprague 593D156X9035D2TE3 is a tantalum capacitor with a capacitance of 15 µF and a tolerance of ±10%.

Capacitance: 15 µF
Tolerance: ±10%
Temperature Range: -55°C to 125°C
ESR: 300mOhm
Case/Package: 2917 (7343 Metric)
Mounting Type: Surface Mount
ROHS Compliant: Yes
REACH Affected: No
Lifetime @ Temperature: Unknown
Failure Rate: -
