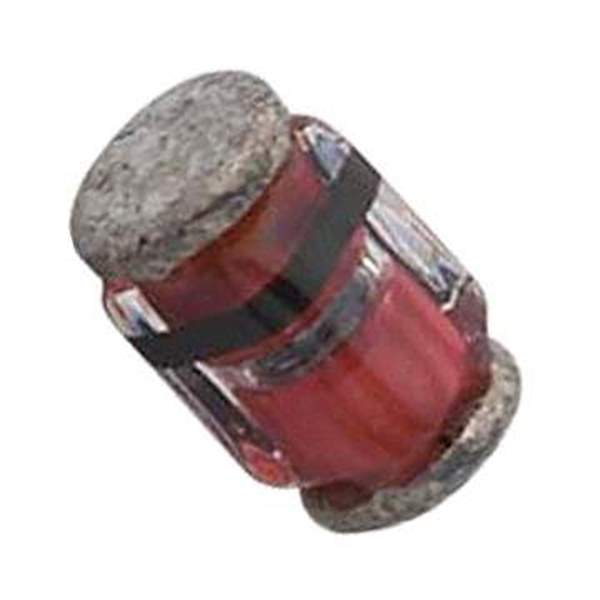

BZM55B20-TR3 Real Image
Same model may have multiple batches, images only for reference.

BZM55B20-TR3

Part No BZM55B20-TR3
Manufacturer Vishay
Catalog Diodes - Zener - Single
Description DIODE ZENER 500MW MICROMELF
Datasheet
BZM55B20-TR3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 20V
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 220 Ohm
Current - Reverse Leakage @ Vr 100nA @ 15V
Voltage - Forward (Vf) (Max) @ If 1.5V @ 200mA
Temperature Range - Operating -65°C to 175°C
Mounting SMD (SMT)
Case / Package MicroMELF
Win Source Part Number 102350-BZM55B20-TR3
Popularity Medium
Supply and Demand Status Balance
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian BZM55B20-TR3 CAD Model

Description

Overview

The BZM55B20-TR3 Zener diode is designed for excellent voltage regulation and stability across various circuits. This component is ideal for maintaining consistent operation in sensitive devices.

Applications

  • Regulated power supplies
  • Voltage reference in precision circuits
  • Protection in communication devices
  • Automotive electronics
  • Customizable electronic designs

Features and Benefits

  • Reverse Voltage: 20V offering robust voltage regulation
  • Power dissipation up to 500mW for durability
  • Excellent stability and reliability
  • Compact design with DO-35 housing
