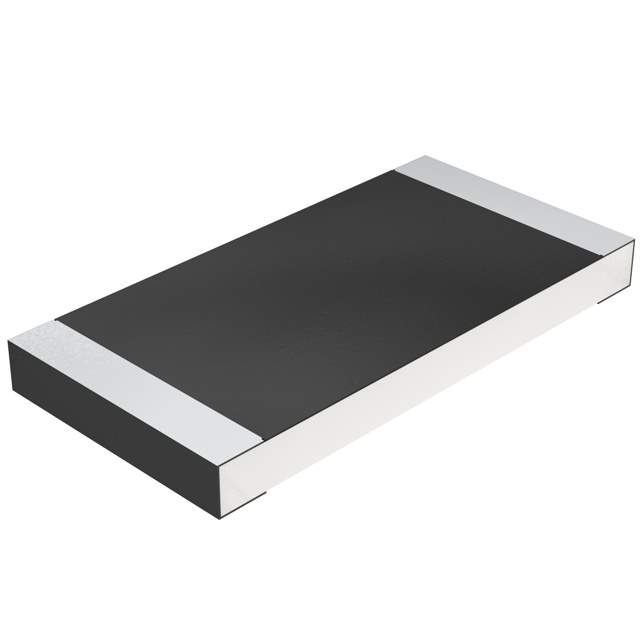

CRCW2512680RJNEG Real Image
Same model may have multiple batches, images only for reference.

CRCW2512680RJNEG

Part No CRCW2512680RJNEG
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 680 OHM 5% 1W 2512 / 680 Ohms ±5% 1W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film
Datasheet
CRCW2512680RJNEG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 680 Ohms
Tolerance ±5%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.248" L x 0.124" W (6.30mm x 3.15mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number CRCW2512
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 541-680XCT,541-680XDKR,541-680XTR,CRCW2512 200 680R 5% E67 E3
Standard Package 2,000
Win Source Part Number 1327336-CRCW2512680RJNEG
Ultra Librarian 3D Model Ultra Librarian CRCW2512680RJNEG CAD Model

Description

The Vishay Dale CRCW2512680RJNEG is a chip resistor designed for surface mount applications.

  • Resistance: 680 Ohms
  • Tolerance: ±5%
  • Composition: Thick Film
  • Power Rating: 1W
  • AEC-Q200 Rated: Yes
  • Operating Temperature Range: -55°C to 155°C
  • Package: 2512 (6432 Metric)
  • Height: 0.028" (0.70mm)
  • Automotive Applications: Yes
