Same model may have multiple batches, images only for reference.

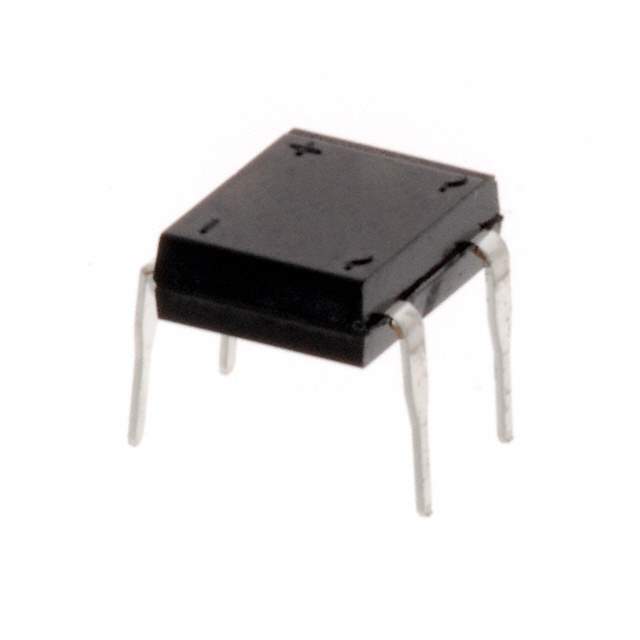

DF08M-E3/45 Real Image
Same model may have multiple batches, images only for reference.

DF08M-E3/45

Part No DF08M-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 800V 1A DFM
Datasheet
DF08M-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 51 Weeks
Features Bridge Rectifier Single Phase Standard 800 V Through Hole DFM
Manufacturer Vishay
Package Tube
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package 4-EDIP (0.300", 7.62mm)
Case / Package DFM
Family Name DF08
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number DF08M-E3/45-ND, DF08ME345, DF08M-E3/45GI
Quantity per package 50
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916890-DF08M-E3/45
Ultra Librarian 3D Model Ultra Librarian DF08M-E3/45 CAD Model

Description

The Vishay 916890-DF08M-E3/45 is a standard bridge rectifier that is suitable for use in discrete semiconductor products.

  • Product Type: Standard Bridge Rectifier
  • Series: DF08 Family
  • Voltage Rating: 800 V
  • Popularity: High
  • Supply and Demand Status: Balanced
