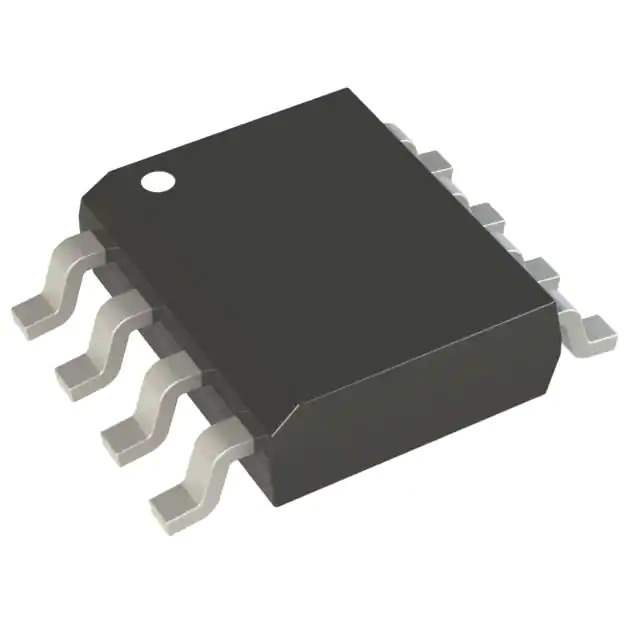

DG642DY Real Image
Same model may have multiple batches, images only for reference.

DG642DY

Part No DG642DY
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH SPDT X 1 8OHM 8SOIC
Datasheet
DG642DY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr Vishay
Package Tube
Product Status Obsolete
Switch Circuit SPDT
Number of Circuits 1
On-State Resistance (Max) 8Ohm
Channel-to-Channel Matching (ΔRon) 500mOhm
Voltage - Supply, Single (V+) 3V ~ 15V
Voltage - Supply, Dual (V±) ±3V ~ 15V
Switch Time (Ton, Toff) (Max) 100ns, 60ns
-3db Bandwidth 500MHz
Charge Injection 40pC
Channel Capacitance (CS(off), CD(off)) 20pF, 20pF
Current - Leakage (IS(off)) (Max) 10nA
Crosstalk -85dB @ 5MHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number DG642
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 584970-DG642DY
Ultra Librarian 3D Model Ultra Librarian DG642DY CAD Model

Description

The DG642DY Analog Switch is a high-performance integrated circuit designed for interface applications.

  • Circuit: Single switch circuit
  • Configuration: SPDT
  • On-State Resistance: 8Ohm
  • -3db Bandwidth: 500MHz
  • Voltage Supply (Single): 3V to 15V
  • Voltage Supply (Dual): ±3V to ±15V
  • Switch Time (ton max): 100ns
  • Switch Time (toff): 60ns
  • Package: 8-SOIC
  • Mounting: Surface mount
  • Temperature Range: -40°C to 85°C
  • Status: Obsolete
  • Manufacturer: Vishay
  • Packaging: Tube
  • Standard Package: 500 pcs
