Same model may have multiple batches, images only for reference.

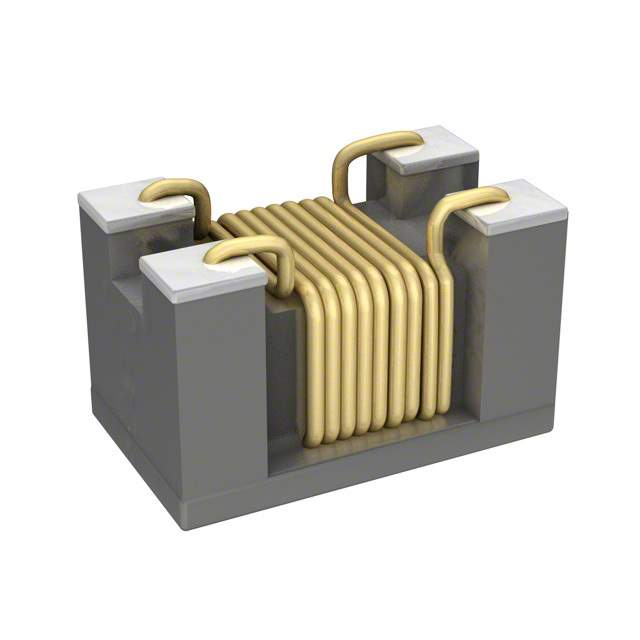

ICM0805ER121M Real Image
Same model may have multiple batches, images only for reference.

ICM0805ER121M

Part No ICM0805ER121M
Manufacturer Vishay
Catalog Common Mode Chokes
Description CMC 370MA 2LN 120 OHM SMD
Datasheet
ICM0805ER121M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 21 Weeks
Features 2 Line Common Mode Choke Surface Mount 370mA DCR 300mOhm
Manufacturer Vishay
Series ICM-0805
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 541-1698-6, 541-1698-2, 541-1698-1
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 874201-ICM0805ER121M
Ultra Librarian 3D Model Ultra Librarian ICM0805ER121M CAD Model

Description

The Vishay ICM-0805 is a 2 line common mode choke designed for surface mount applications.

  • Current Rating: 370mA
  • DCR: 300mOhm
  • Package: Horizontal, 4 PC pad
  • Packaging: Reel - TR
  • Series: ICM-0805
  • Supply and Demand Status: Limited
  • MSL Level: 1 (unlimited)
  • Production Lead Time: 21 weeks
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS Code: 8548.90.0100
