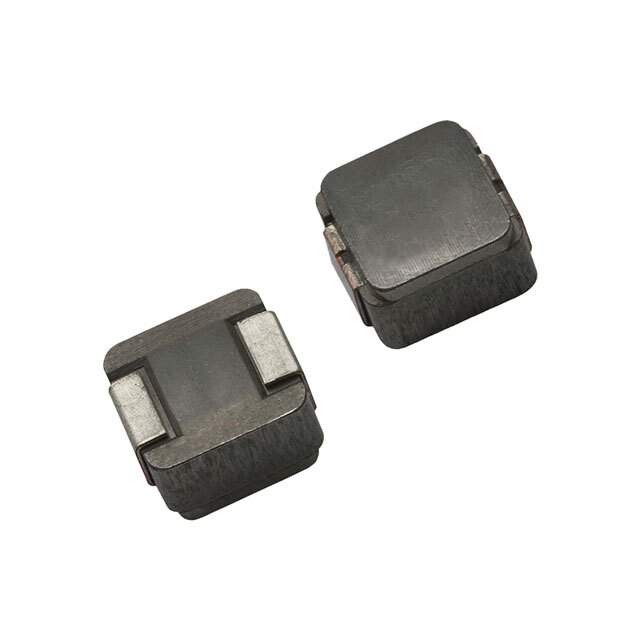

IHLP2020CZER100M1A

Name: IHLP2020CZER100M1A
Brand: Vishay
SKU: 959581
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP2020CZER100M1A
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-2020CZ-1A 10 20% ER E3 / 10 µH Shielded Inductor 2.75 A 131.9mOhm Max Nonstandard
Datasheet	IHLP2020CZER100M1A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-2020CZ-1A
Package	Tape & Reel
Material - Core	Metal Composite
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	2.75 A
Current - Saturation (Isat)	2.25A
Shielding	Shielded
DC Resistance (DCR)	131.9mOhm Max
Frequency - Self Resonant	17MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.216" L x 0.204" W (5.49mm x 5.18mm)
Height - Seated (Max)	0.118" (3.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	541-IHLP2020CZER100M1ATR,541-IHLP2020CZER100M1ACT,541-IHLP2020CZER100M1ADKR
Standard Package	2,000
Win Source Part Number	959581-IHLP2020CZER100M1A
Ultra Librarian 3D Model	Ultra Librarian IHLP2020CZER100M1A CAD Model

Alternative Products

Description

The Vishay Dale IHLP2020CZER100M1A is an inductor coil choke that is used in fixed inductors.

Series: IHLP-2020CZ-1A
Inductance: 10 µH
Tolerance: ±20%
DC Resistance: 131.9mOhm Max
Current Rating: 2.75 A
Shielded: Yes
Height: 0.118" (3.00mm)
Mounting Type: Surface Mount
Pieces per Package: 2000
AEC-Q200: Yes
Temperature Range: -55°C to 125°C
REACH: Unaffected
ECCN: EAR99
Market Popularity: High
Supply and Demand Status: Balanced
