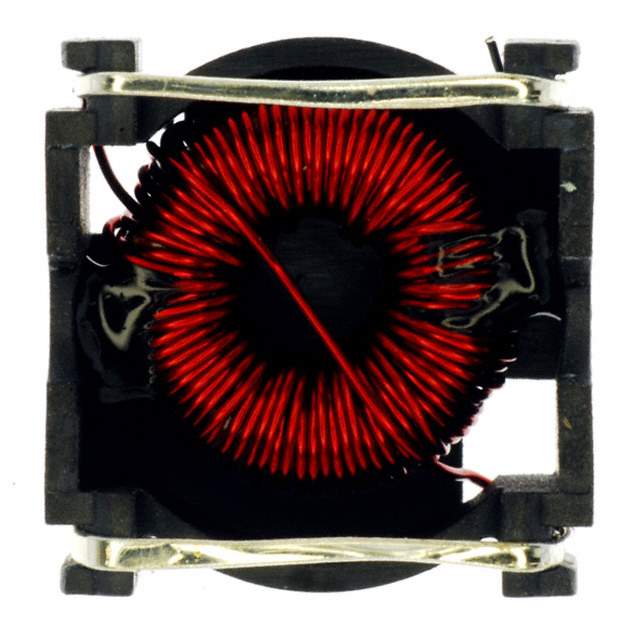

Same model may have multiple batches, images only for reference.

PE-53821SNL

Name: PE-53821SNL
Brand: Pulse
SKU: 1327518
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PE-53821SNL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 78UH 820MA 300MOHM SMD / 78 µH Shielded Toroidal Inductor 820 mA 300mOhm Nonstandard
Datasheet	PE-53821SNL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Bulk
Type	Toroidal
Inductance	78 µH
Tolerance	±20%
Current Rating (Amps)	820 mA
Shielding	Shielded
DC Resistance (DCR)	300mOhm
Temperature Range - Operating	-40°C ~ 130°C
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.570" L x 0.565" W (14.48mm x 14.35mm)
Height - Seated (Max)	0.360" (9.14mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	553-1404,PE53821SNL
Standard Package	30
Win Source Part Number	1327518-PE-53821SNL
Ultra Librarian 3D Model	Ultra Librarian PE-53821SNL CAD Model

Alternative Products

Description

The Pulse Electronics 1327518-PE-53821SNL is a fixed inductor that is part of the Inductors, Coils, Chokes category.

Type: Toroidal
Shielding: Shielded
Size: 0.570" L x 0.565" W (14.48mm x 14.35mm)
Inductance: 78 µH
Tolerance: ±20%
DC Resistance (DCR): 300mOhm
Temperature Range: -40°C ~ 130°C
Mounting: Surface-mounted
