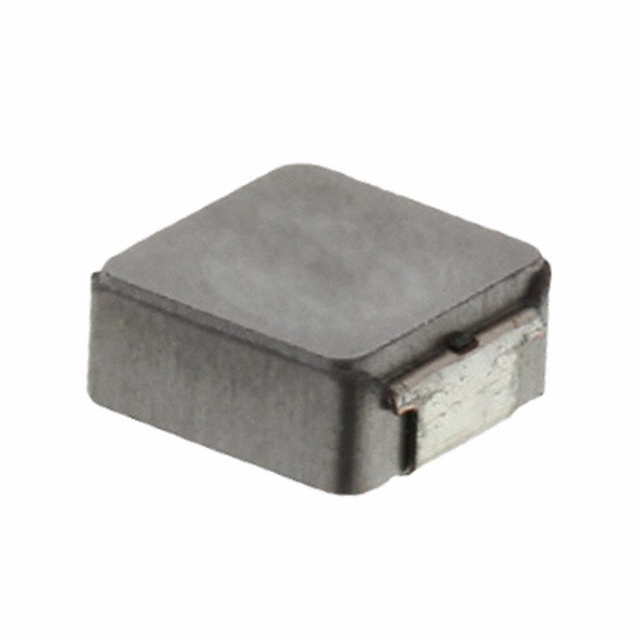

Same model may have multiple batches, images only for reference.

IHLP2525EZER4R7M01

Name: IHLP2525EZER4R7M01
Brand: Vishay
SKU: 1532385
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHLP2525EZER4R7M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 6.5A 30.3MOHM SM
Datasheet	IHLP2525EZER4R7M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Type	Molded
Material - Core	Iron Powder
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	6.5 A
Current - Saturation (Isat)	7A
Shielding	Shielded
DC Resistance (DCR)	30.3mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max)	0.197\
Package	Tape & Reel
Supply and Demand Status	Shortage
Win Source Part Number	1532385-IHLP2525EZER4R7M01
Ultra Librarian 3D Model	Ultra Librarian IHLP2525EZER4R7M01 CAD Model
