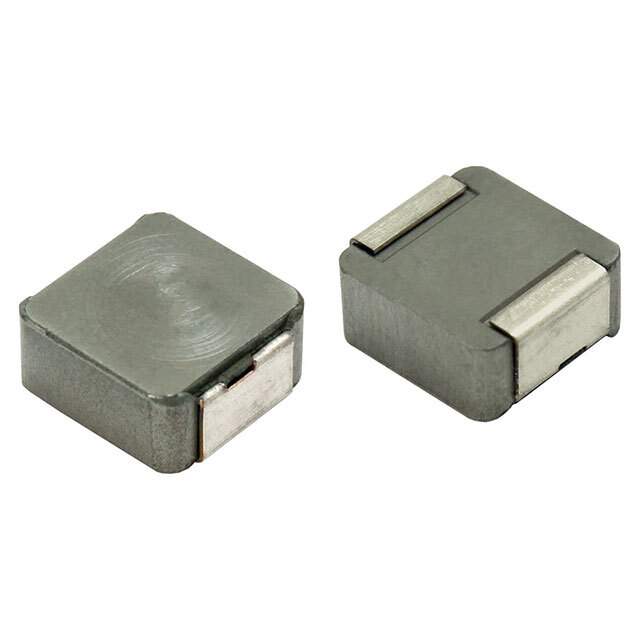

IHLP3232DZER100M1A Real Image
Same model may have multiple batches, images only for reference.

IHLP3232DZER100M1A

Part No IHLP3232DZER100M1A
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-3232DZ-1A 10 20% ER E3  /  10 µH Shielded Inductor 5.4 A 51.8mOhm Max Nonstandard
Datasheet
IHLP3232DZER100M1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-3232DZ-1A
Package Tape & Reel
Material - Core Metal Composite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 5.4 A
Current - Saturation (Isat) 6.4A
Shielding Shielded
DC Resistance (DCR) 51.8mOhm Max
Frequency - Self Resonant 12MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 541-IHLP3232DZER100M1ADKR,541-IHLP3232DZER100M1ACT,541-IHLP3232DZER100M1ATR
Standard Package 500
Win Source Part Number 1130779-IHLP3232DZER100M1A
Ultra Librarian 3D Model Ultra Librarian IHLP3232DZER100M1A CAD Model

Description

This shielded fixed inductor with a metal composite core is ideal for use in various electronic circuits.

  • Type: shielded fixed inductor
  • Core Material: metal composite
  • Inductance: 10 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 51.8mOhm max
  • Current Rating: 5.4 A
  • Current Saturation: 6.4A
  • Compliance: AEC-Q200
  • Temperature Range: -55°C to 125°C
  • Package: tape and reel
  • Size: 0.340" L x 0.322" W (8.64mm x 8.18mm)
  • Inductance Frequency: 100 kHz
  • Self-Resonant Frequency: 12MHz
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Supplier Device Package: nonstandard
  • HTSUS: 8504.50.8000
