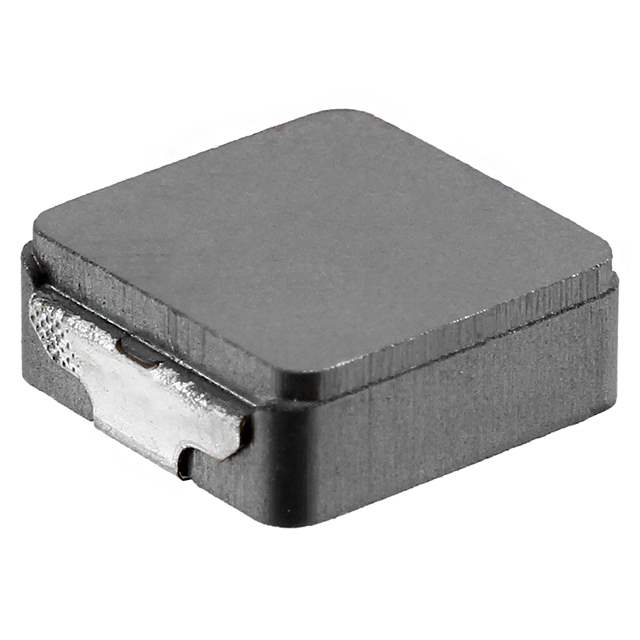

IHLP4040DZER2R2M01

Name: IHLP4040DZER2R2M01
Brand: Vishay
SKU: 156228
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHLP4040DZER2R2M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Powdered Iron 12A 0.009Ohm DCR 4040 T/R / FIXED IND 2.2UH 12A 9 MOHM SMD
Datasheet	IHLP4040DZER2R2M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Type	Molded
Inductance	2.2μH
Tolerance	±20%
Current Rating	12A
Current - Saturation	25.6A
DC Resistance (DCR)	9 mOhm Max
Temperature Range - Operating	-55°C to 125°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.157" (4.00mm)
Win Source Part Number	124510-IHLP4040DZER2R2M01
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Quantity per package	500
Family Name	IHLP-4040DZ-01
Introduction Date	October 17, 2006
ECCN	EAR99
Country of Origin	China, Israel, United States of America
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IHLP4040DZER2R2M01 CAD Model

Alternative Products

Description

The Vishay IHLP4040DZER2R2M01 is a surface mount inductor designed for use in a variety of electronic applications.

Current Rating: 12A
Inductance: 2.2μH
Package: Molded
Mounting: Surface mount technology
Tolerance: ±20%
DC Resistance (DCR): 9 mOhm max
Temperature Range: -55°C to 125°C
Status: Active
Popularity: High
Supply and Demand Status: Limited
