Same model may have multiple batches, images only for reference.

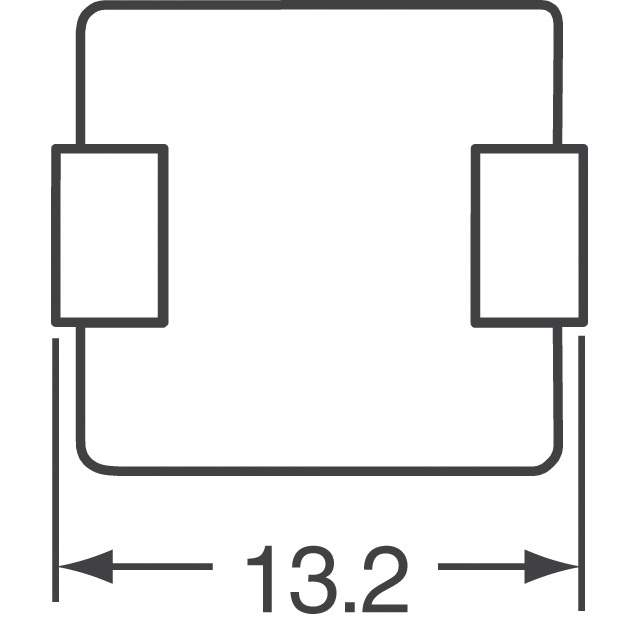

IHLP5050CEERR22M01 Real Image
Same model may have multiple batches, images only for reference.

IHLP5050CEERR22M01

Part No IHLP5050CEERR22M01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 220NH 38.5A 1.3 MOHM
Datasheet
IHLP5050CEERR22M01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Molded
Inductance 220nH
Tolerance ±20%
Current Rating 38.5A
Current - Saturation 65A
DC Resistance (DCR) 1.3 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.138" (3.50mm)
Win Source Part Number 068766-IHLP5050CEERR22M01
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian IHLP5050CEERR22M01 CAD Model

Description

The Vishay IHLP5050CEERR22M01 is a molded inductor with a current rating of 38.5A and an inductance of 220nH.

  • Height: 0.138" (3.50mm)
  • Tolerance: ±20%
  • Current Saturation: 65A
  • Frequency Test: 100kHz
  • DC Resistance (DCR): 1.3 mOhm Max
  • Operating Temperature Range: -55°C to 125°C
  • Popularity: medium popularity
  • Supply and Demand Status: limited
  • Package Contains: 500 pcs
