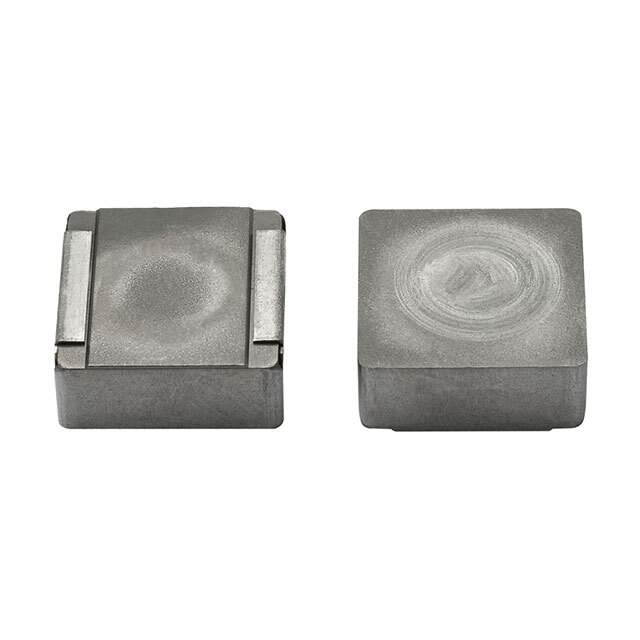

IHLP6767GZER220M1A

Name: IHLP6767GZER220M1A
Brand: Vishay
SKU: 1064808
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP6767GZER220M1A
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-6767GZ-1A 22 20% ER E3 / 22 µH Shielded Inductor 12 A 21mOhm Max Nonstandard
Datasheet	IHLP6767GZER220M1A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-6767GZ-1A
Package	Tape & Reel
Material - Core	Metal Composite
Inductance	22 µH
Tolerance	±20%
Current Rating (Amps)	12 A
Current - Saturation (Isat)	9.5A
Shielding	Shielded
DC Resistance (DCR)	21mOhm Max
Frequency - Self Resonant	4.3MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.675" L x 0.675" W (17.15mm x 17.15mm)
Height - Seated (Max)	0.276" (7.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	541-IHLP6767GZER220M1ADKR,541-IHLP6767GZER220M1ATR,541-IHLP6767GZER220M1ACT
Standard Package	200
Win Source Part Number	1064808-IHLP6767GZER220M1A
Ultra Librarian 3D Model	Ultra Librarian IHLP6767GZER220M1A CAD Model

Alternative Products

Description

The IHLP-6767GZ-1A series of inductors from Vishay Dale are a great choice for use in a variety of electronic applications.

Applications: electronic applications
Features: small and compact, shielded
Inductance: 22 µH
Tolerance: ±20%
DC Resistance: 21 mOhm max
Current Rating: 12 A
Temperature Range: -55°C to 125°C
AEC-Q200 Rated: Yes
