Same model may have multiple batches, images only for reference.

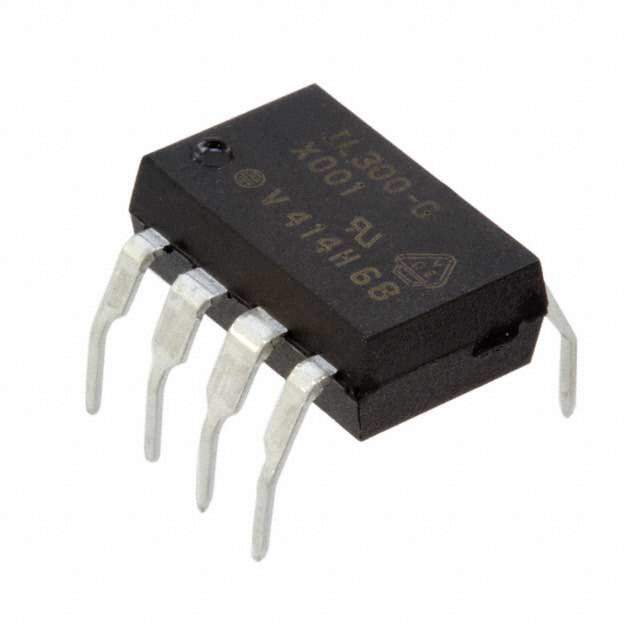

IL300-DEFG-X016 Real Image
Same model may have multiple batches, images only for reference.

IL300-DEFG-X016

Part No IL300-DEFG-X016
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV PHVOLT 8DIP  /  Optoisolator Photovoltaic, Linearized Output 5300Vrms 1 Channel 8-DIP
Datasheet
IL300-DEFG-X016 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Vishay Semiconductor Opto Division
Package Tube
Number of Channels 1
Voltage - Isolation 5300Vrms
Rise / Fall Time (Typ) 1µs, 1µs
Input Type DC
Output Type Photovoltaic, Linearized
Voltage - Output (Max) 500mV
Current - Output / Channel 70µA (Typ)
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Max) 60 mA
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 8-DIP (0.400", 10.16mm)
Supplier Device Package 8-DIP
Base Product Number IL300
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Standard Package 50
Win Source Part Number 1156982-IL300-DEFG-X016
Ultra Librarian 3D Model Ultra Librarian IL300-DEFG-X016 CAD Model

Description

The Vishay IL300-DEFG-X016 is a photovoltaic output optoisolator with a linearized output type and a DC input type.

  • Maximum Forward Current: 60mA
  • Typical Forward Voltage: 1.25V
  • Rise/Fall Time: 1µs
  • Typical Output Current: 70µA
  • Voltage Isolation: 5300Vrms
  • Mounting Type: Through-hole
  • Package: 8-DIP
  • Temperature Range: -55°C to 100°C
  • RoHS Compliant: RoHS compliant
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Balance
  • Manufacturer: Vishay
