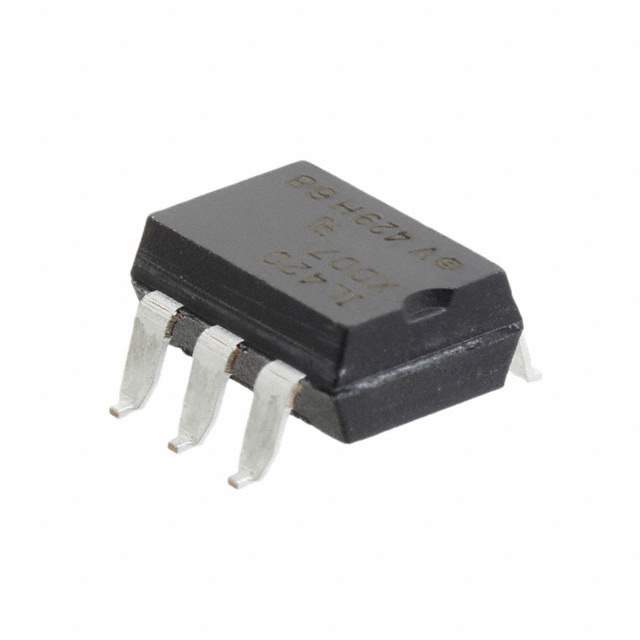

IL410-X007T Real Image
Same model may have multiple batches, images only for reference.

IL410-X007T

Part No IL410-X007T
Manufacturer Vishay
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5.3KV TRIAC
Datasheet
IL410-X007T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5300Vrms
Voltage - Off State 600V
Static dV/dt (Min) 10kV/μs
Current - LED Trigger (Ift) (Max) 2mA
Current - On State (It (RMS)) (Max) 300mA
Current - Hold (Ih) 500μA
Turn On Time 35μs
Forward Voltage 1.16V
Continuous forward current- Max 60mA
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals CSA, UR
Win Source Part Number 1045310-IL410-X007T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IL410-X007T CAD Model

Description

The Vishay IL410-X007T is a triac output type optocoupler that is CSA and UR approved.

  • Mounting: surface-mount technology (SMT)
  • Forward Voltage: 1.16V
  • Operating Temperature Range: -55°C to 100°C
  • Package: 6-SMD case
  • Voltage-Off State: 600V
  • Maximum Current-On State (It (RMS)): 300mA
  • Number of Channels: 1
  • Isolation Voltage: 5300Vrms
  • Current Hold (Ih): 500μA
  • Zero-Crossing Circuit: yes
  • Static dV/dt (Min): 10kV/μs
  • Current LED Trigger (Ift) (Max): 2mA
  • Turn-On Time: 35μs
  • Supply and Demand: balanced
