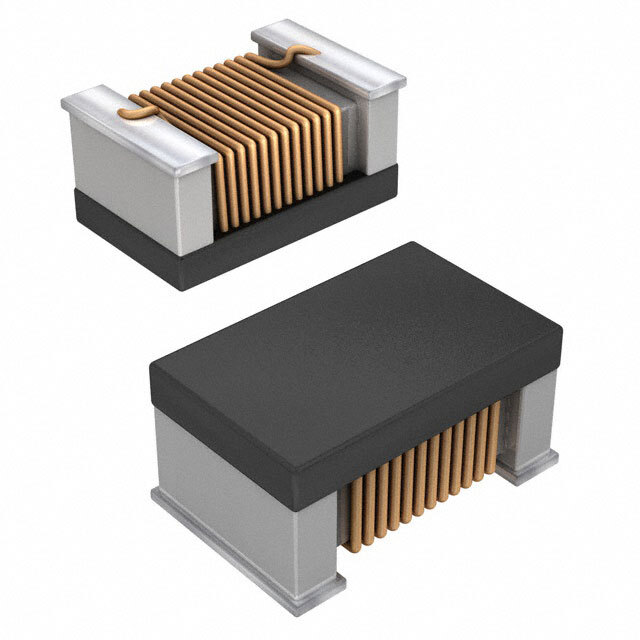

Same model may have multiple batches, images only for reference.
IMC0805ER27NJ01 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

IMC0805ER27NJ01

Part No IMC0805ER27NJ01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 27NH 600MA 120MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 27 nH
Tolerance ±5%
Current Rating (Amps) 600 mA
Shielding Unshielded
DC Resistance (DCR) 120mOhm Max
Q @ Freq 60 @ 500MHz
Frequency - Self Resonant 2.6GHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 250 MHz
Mounting Type Surface Mount
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.055\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1532500-IMC0805ER27NJ01
Ultra Librarian 3D Model Ultra Librarian IMC0805ER27NJ01 CAD Model
