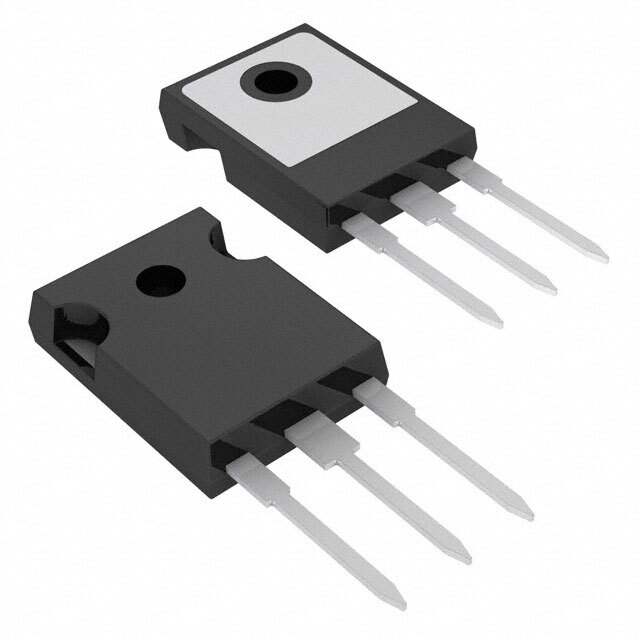

IRFP22N60KPBF Real Image
Same model may have multiple batches, images only for reference.

IRFP22N60KPBF

Part No IRFP22N60KPBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 22A TO-247AC
Datasheet
IRFP22N60KPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 600V
Continuous Drain Current at 25°C 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 150nC @ 10V
Max Input Capacitance 3570pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 370W (Tc)
Maximum Rds On at Id,Vgs 280 mOhm @ 13A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-247-3
Dimension TO-247-3
Win Source Part Number 60540-IRFP22N60KPBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRFP22N60KPBF CAD Model

Description

The IRFP22N60KPBF is a N-Channel MOSFET manufactured by Vishay, which is commonly used in discrete semiconductor products.

  • Drain-Source Breakdown Voltage: 600V
  • Continuous Drain Current: 22A (Tc) at 25°C
  • Maximum Rds On at Id,Vgs: 280 mOhm @ 13A, 10V
  • Maximum Gate-Source Voltage: ±30V
  • Maximum Gate Charge: 150nC @ 10V
  • Maximum Input Capacitance: 3570pF @ 25V
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Package: TO-247-3
  • Popularity: High
  • Supply and Demand Status: Limited
