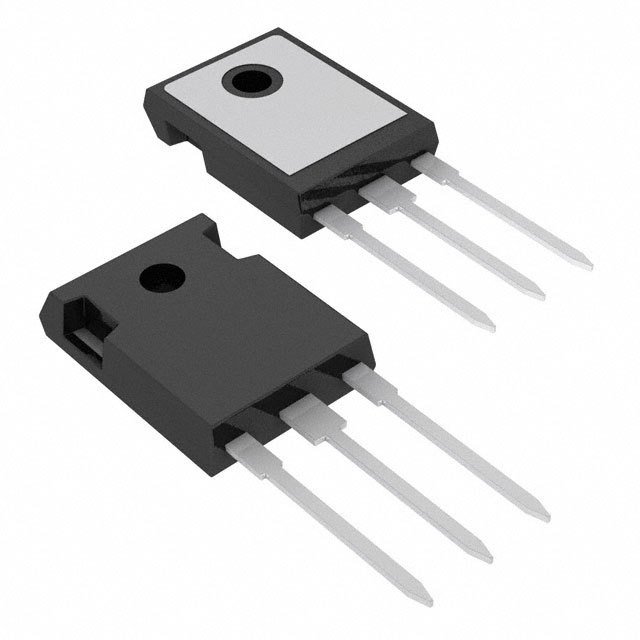

Same model may have multiple batches, images only for reference.

IRFP460NPBF

Name: IRFP460NPBF
Brand: Vishay
SKU: 462178
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IRFP460NPBF
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 500V 20A TO-247AC
Datasheet	IRFP460NPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay
Packaging	Tube/Rail
Status	Obsolete(EOL)
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	500V
Continuous Drain Current at 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	5V @ 250μA
Max Gate Charge	124nC @ 10V
Max Input Capacitance	3540pF @ 25V
Maximum Gate-Source Voltage	±30V
Power Dissipation (Max)	280W (Tc)
Maximum Rds On at Id,Vgs	240 mOhm @ 12A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	Through Hole
Case / Package	TO-247-3
Dimension	TO-247-3
Win Source Part Number	1046998-IRFP460NPBF
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRFP460NPBF CAD Model

Alternative Products

Description

The Vishay MOSFET is a high-quality component that is perfect for use in discrete semiconductor products.

Power Dissipation: 280W (Tc)
Drain-Source Breakdown Voltage: 500V
Channel Type: N-Channel
Maximum Gate-Source Voltage: ±30V
Maximum Rds On: 240 mOhm @ 12A, 10V
Mounting Style: Through Hole
Case/Package: TO-247-3
Gate-Source Threshold Voltage: 5V @ 250μA
Maximum Gate Charge: 124nC @ 10V
Operating Temperature: -55°C to 150°C (TJ)
Product Status: Obsolete (EOL)
Popularity: Medium
Supply and Demand: Balanced
Applications: Power supplies, motor control, and lighting.
