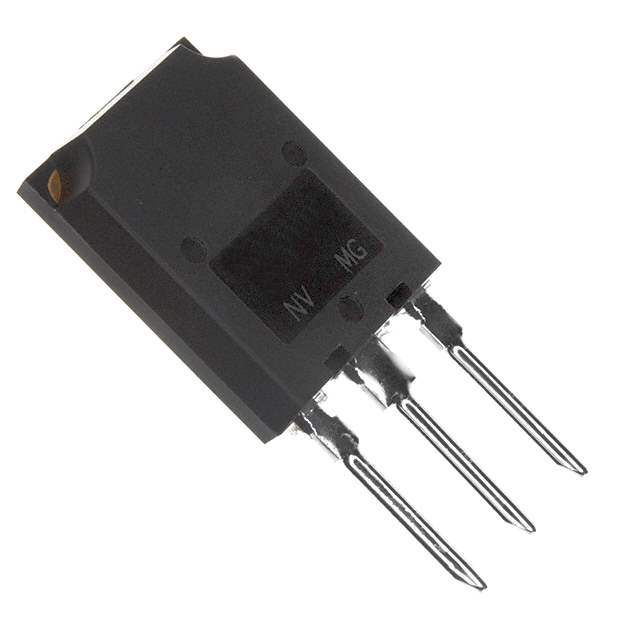

IRFPS40N50LPBF

Part No IRFPS40N50LPBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 46A SUPER247
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 500V
Continuous Drain Current at 25°C 46A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 380nC @ 10V
Max Input Capacitance 8110pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 540W (Tc)
Maximum Rds On at Id,Vgs 100 mOhm @ 28A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package SUPER-247 (TO-274AA)
Dimension TO-274AA
Win Source Part Number 139974-IRFPS40N50LPBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRFPS40N50LPBF CAD Model

Description

IRFPS40N50LPBF from Vishay is a power MOSFET device listed in the Transistors - FETs, MOSFETs - RF category and is typically evaluated by engineers for high-power switching and related circuit designs where robust semiconductor performance and dependable sourcing matter. This part is relevant in industrial power stages, conversion equipment, motor-related control assemblies, and other designs that may require a high-voltage MOSFET option from a recognized manufacturer. For procurement teams and design engineers, its value lies in brand traceability, established supplier familiarity, and potential fit for maintenance, repair, or legacy design support. The current lifecycle status for IRFPS40N50LPBF is information not available, so teams should confirm latest production status directly with Vishay or authorized channels before locking it into new designs. RoHS compliance information is also not available in the provided data and should be verified through the official datasheet, manufacturer declarations, or distributor compliance documents before purchase or release.
