The Vishay 093951-IRFR210TR is an N-Channel MOSFET designed for use in discrete semiconductor products.

• Maximum Power Dissipation: 2.5W (Ta), 25W (Tc)
• Drain-Source Breakdown Voltage: 200V
• Continuous Drain Current: 2.6A (Tc)
• Gate-Source Threshold Voltage: 4V @ 250μA
• Maximum Gate Charge: 8.2nC @ 10V
• Maximum Input Capacitance: 140pF @ 25V
• Maximum Rds on at Id, Vgs: 1.5 Ohm @ 1.6A, 10V

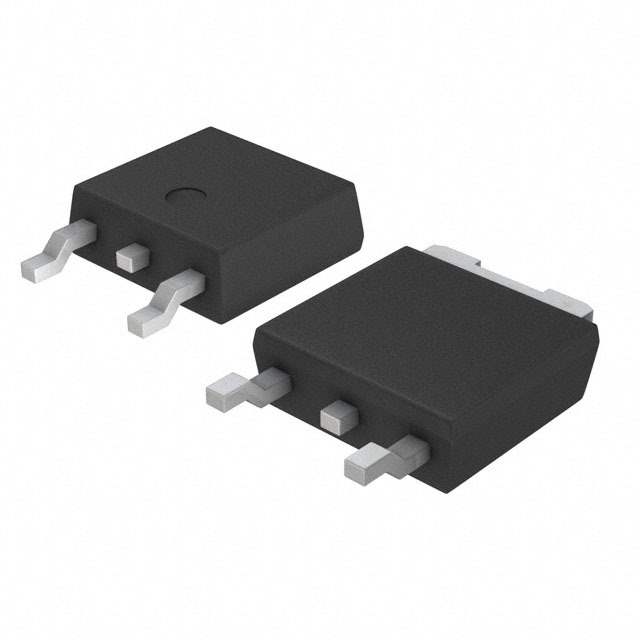

• Package: D-Pak package
• Dimensions: TO-252-3, DPak (2 Leads + Tab), SC-63
• Temperature Range: -55°C to 150°C (TJ)
• Usage: Commonly used in the industry with high popularity
